PureBay 2400
24 Feet 5 Inches 9 350 ***Must Upgrade to Heavy Duty Jackplate*** HP 78 Gallons
Colors Available:
BEST BAY FISHING BOATS TO CHASE THE PERFECT CATCH

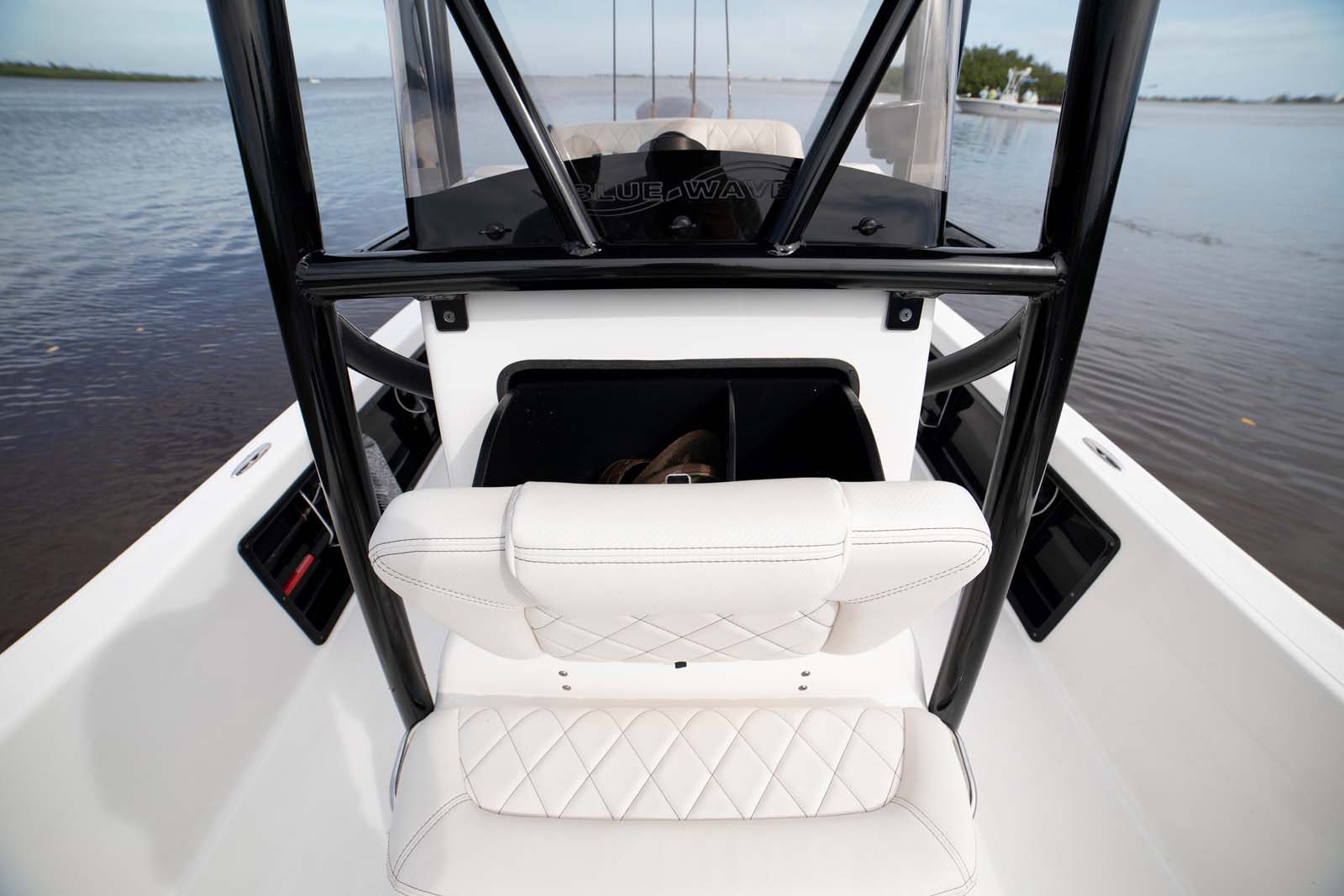

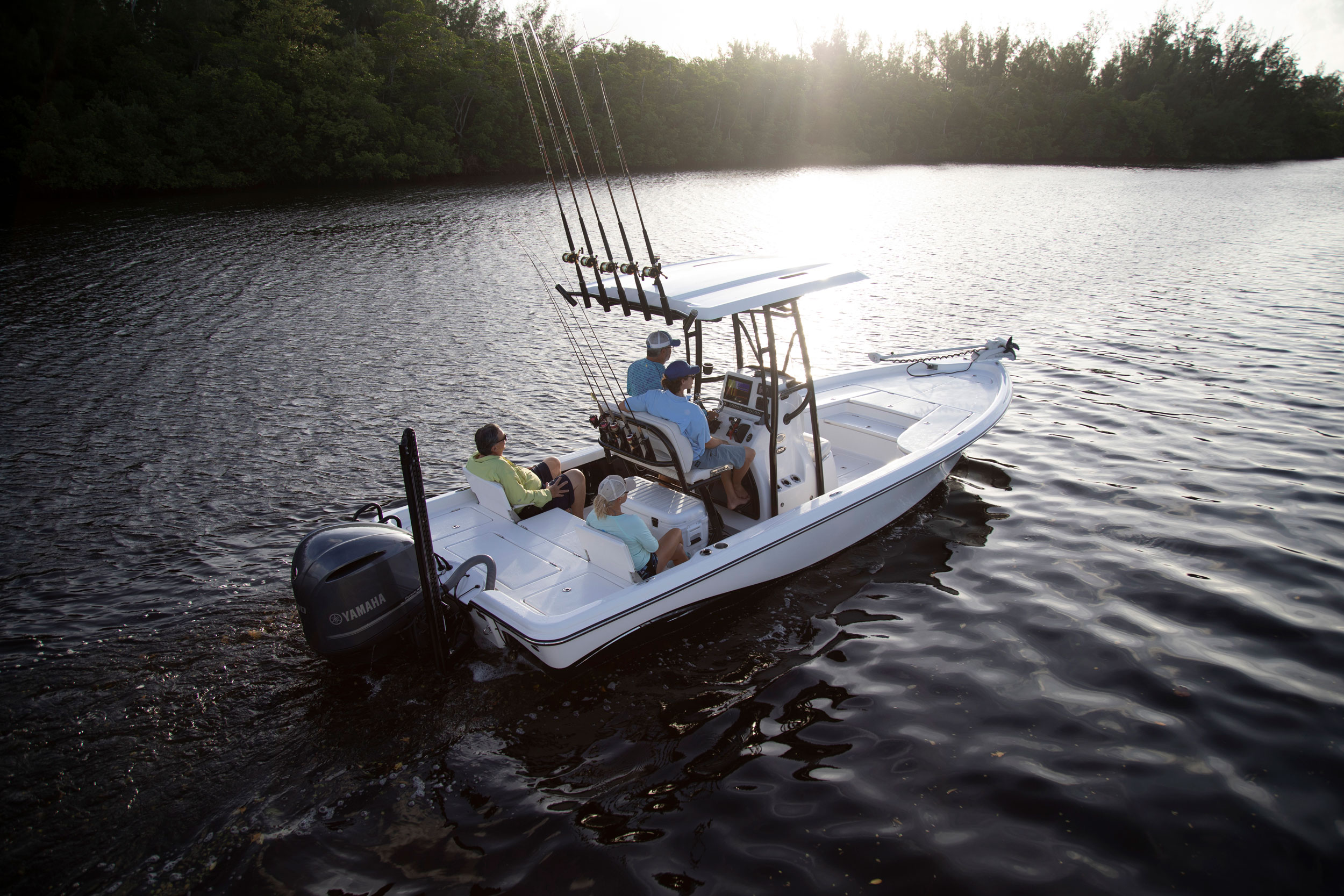

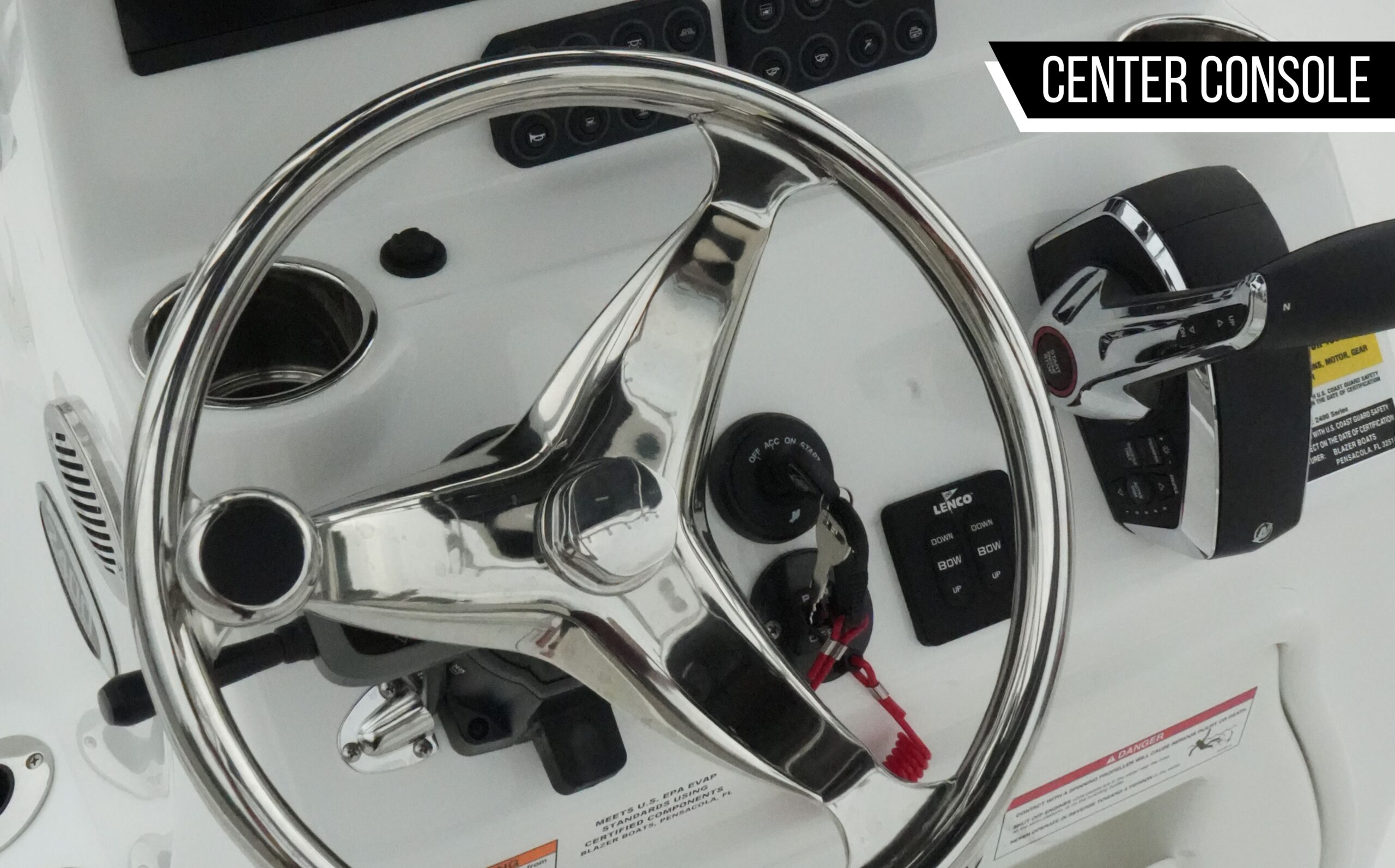

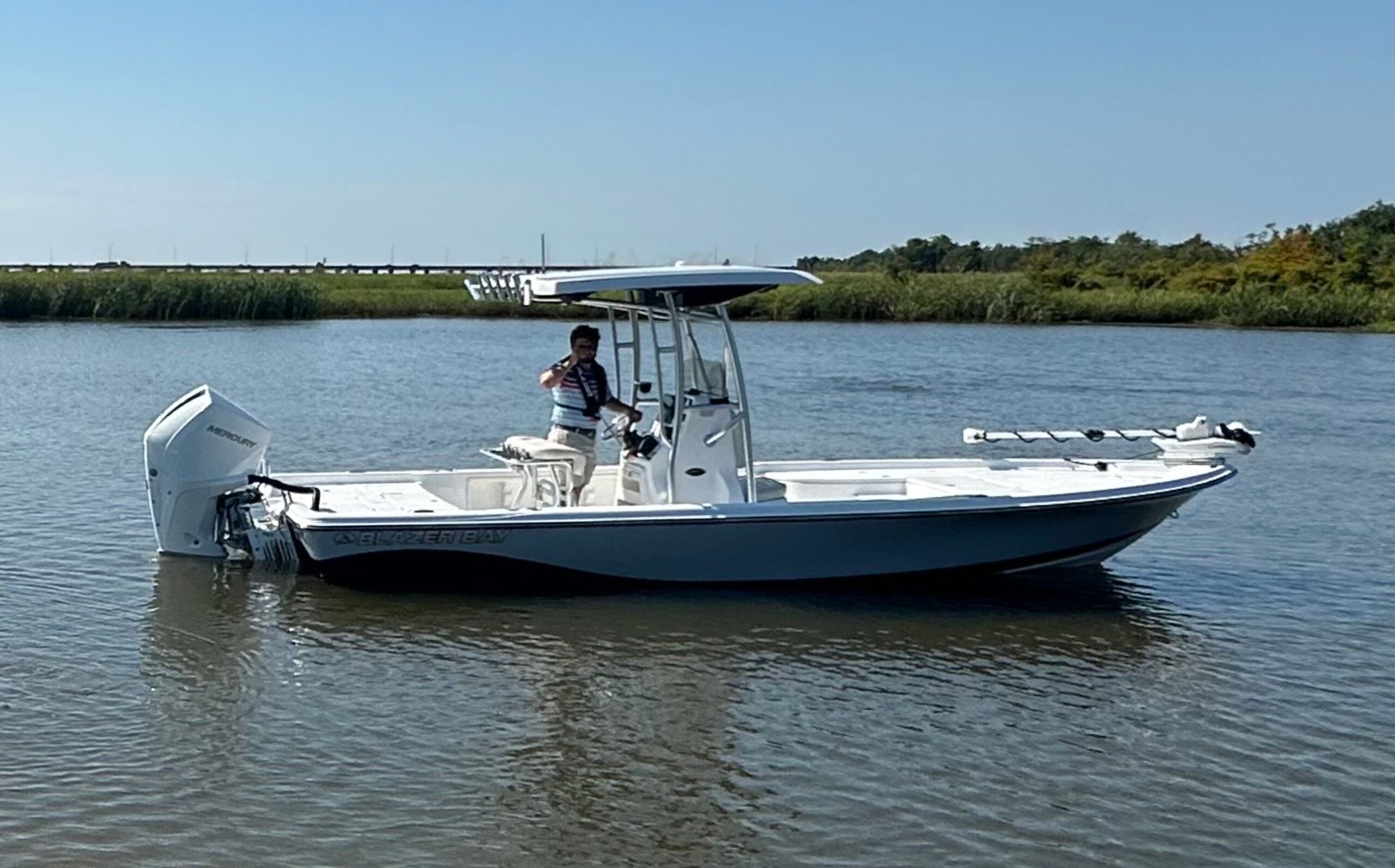

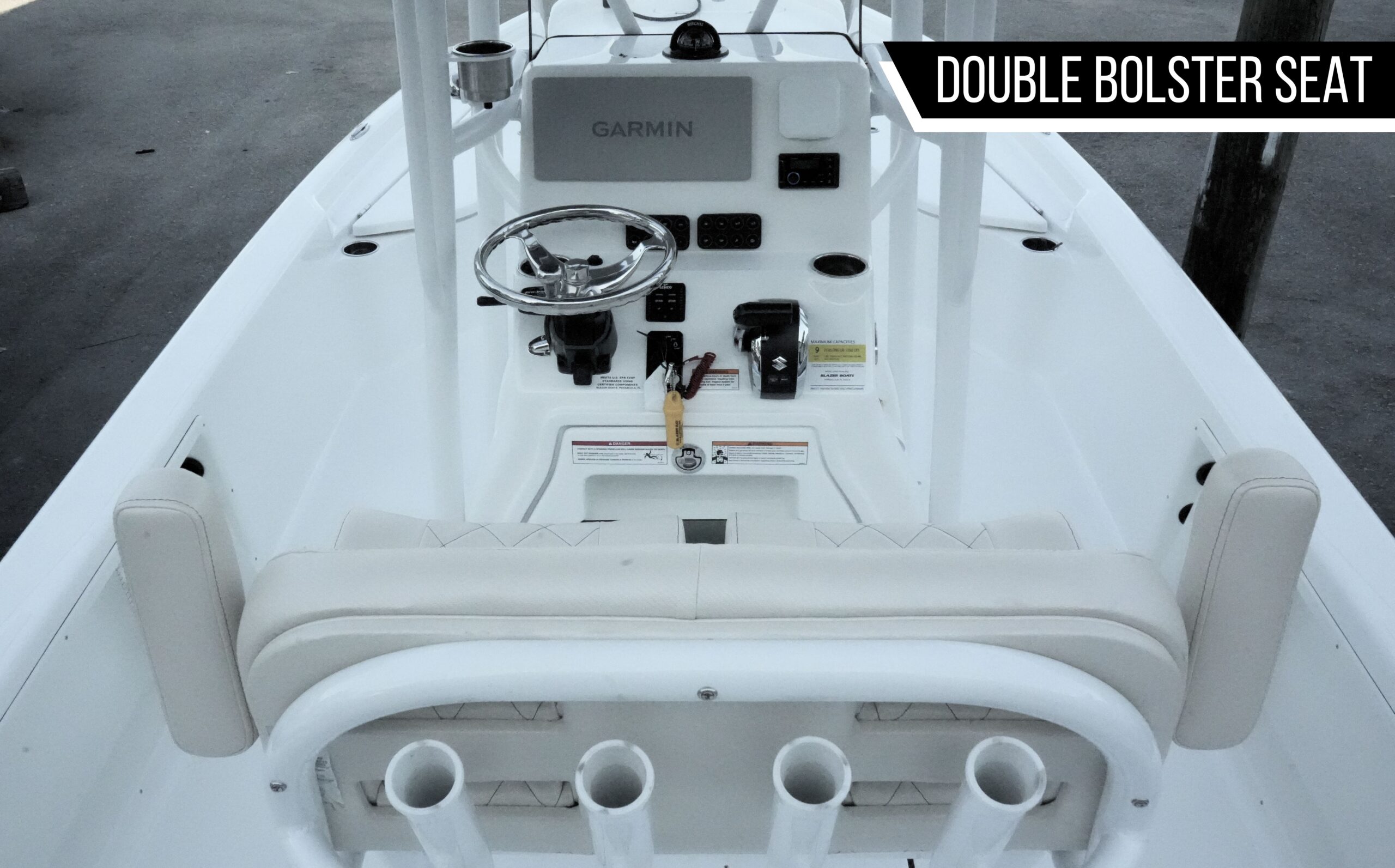

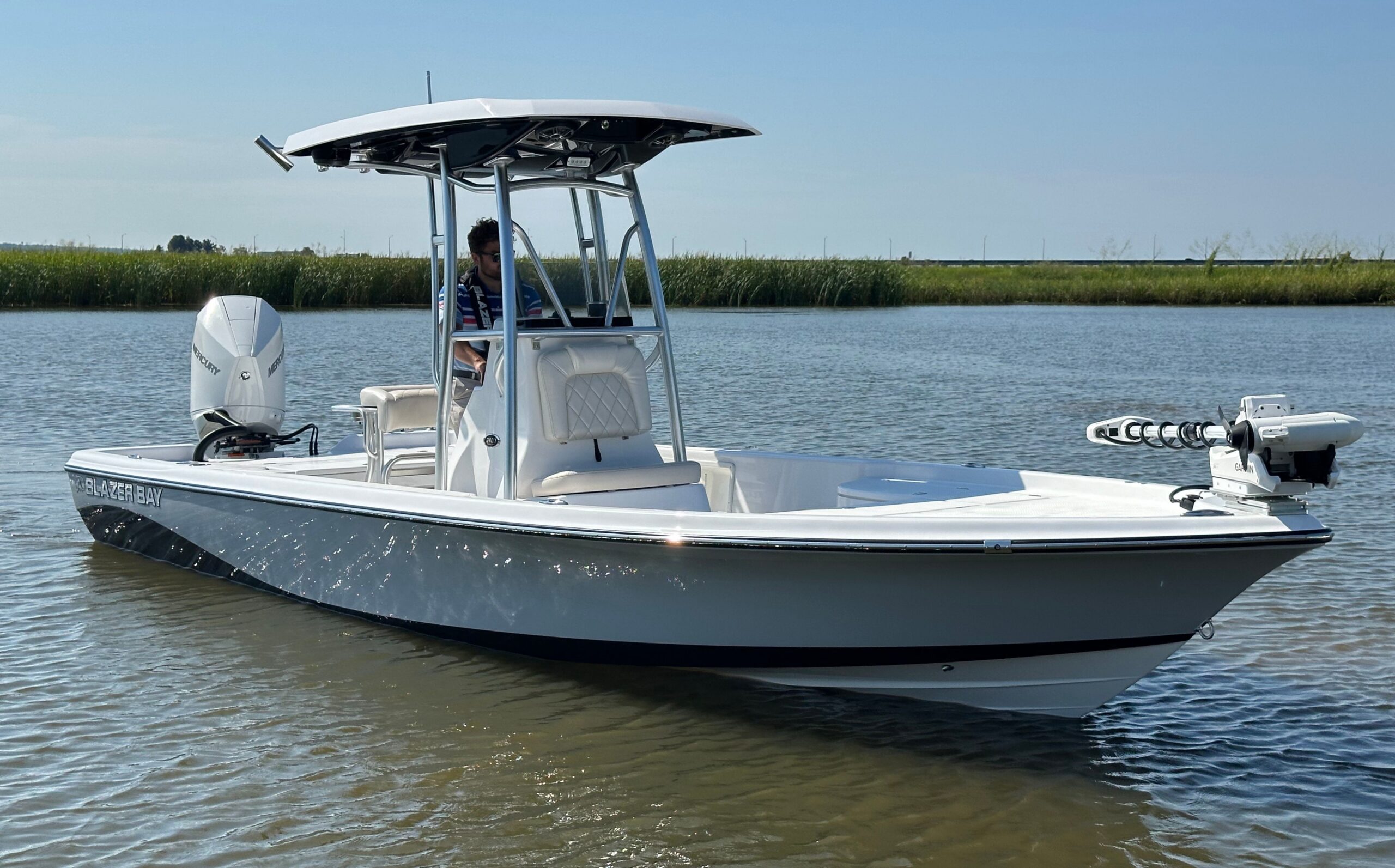

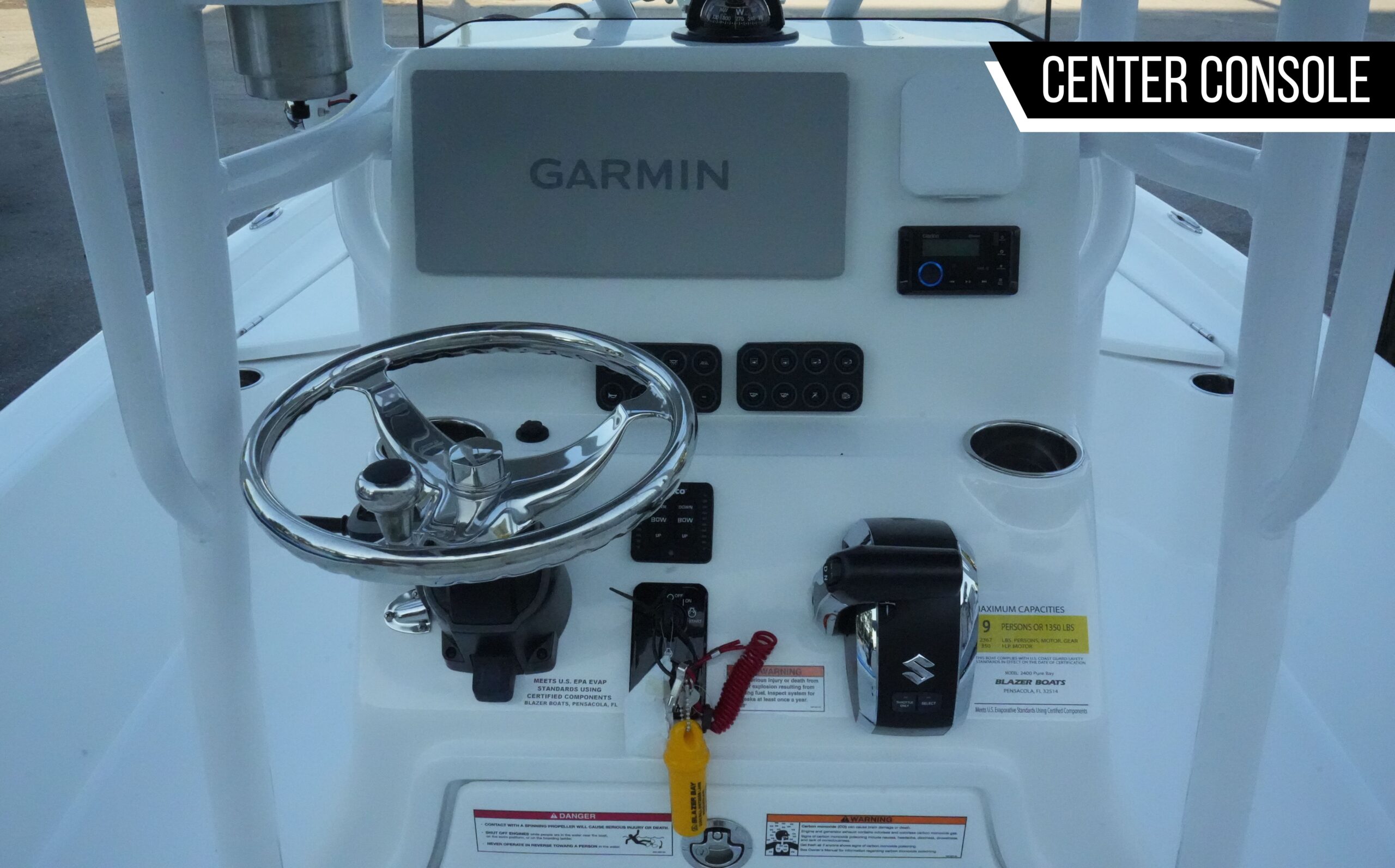

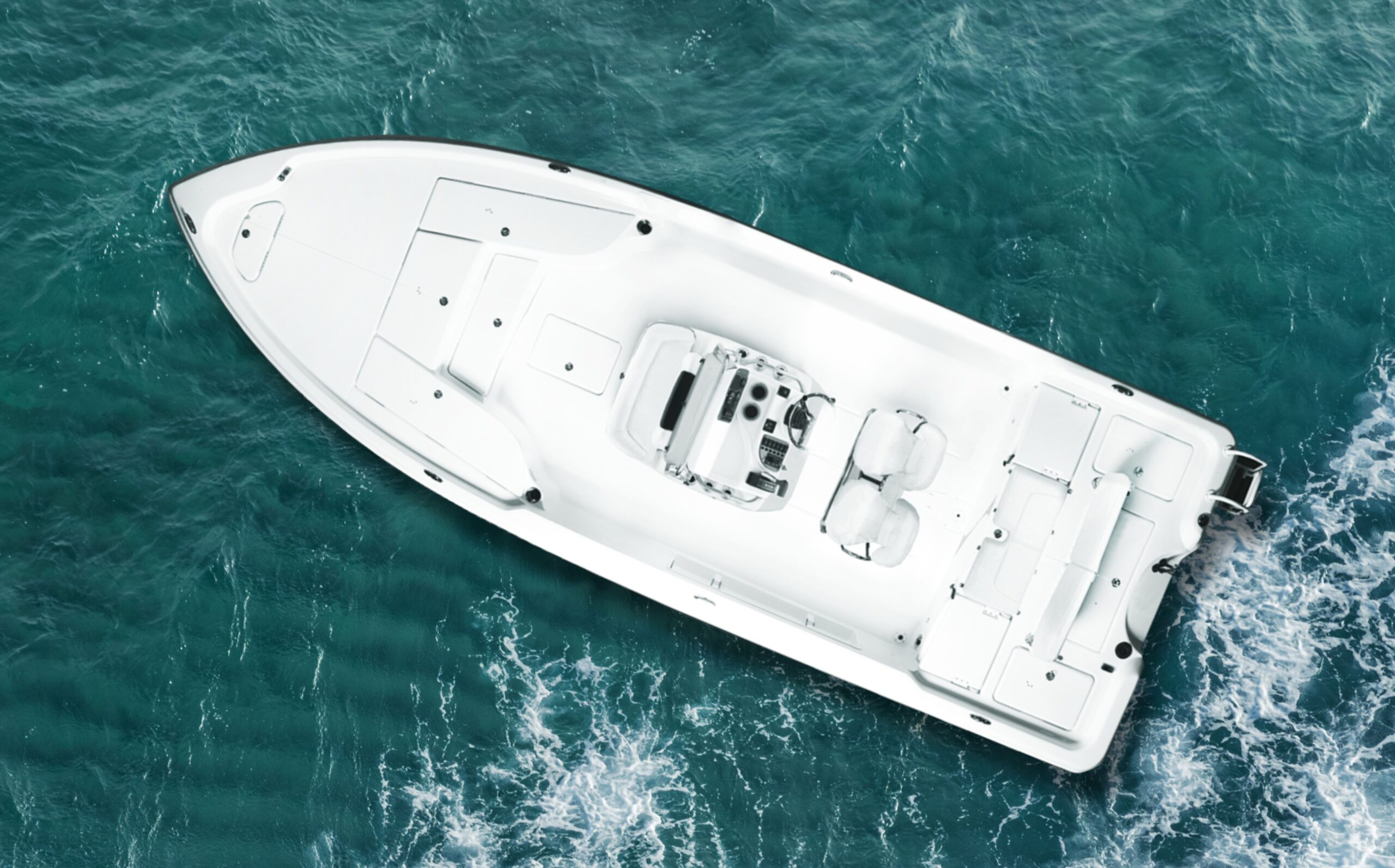

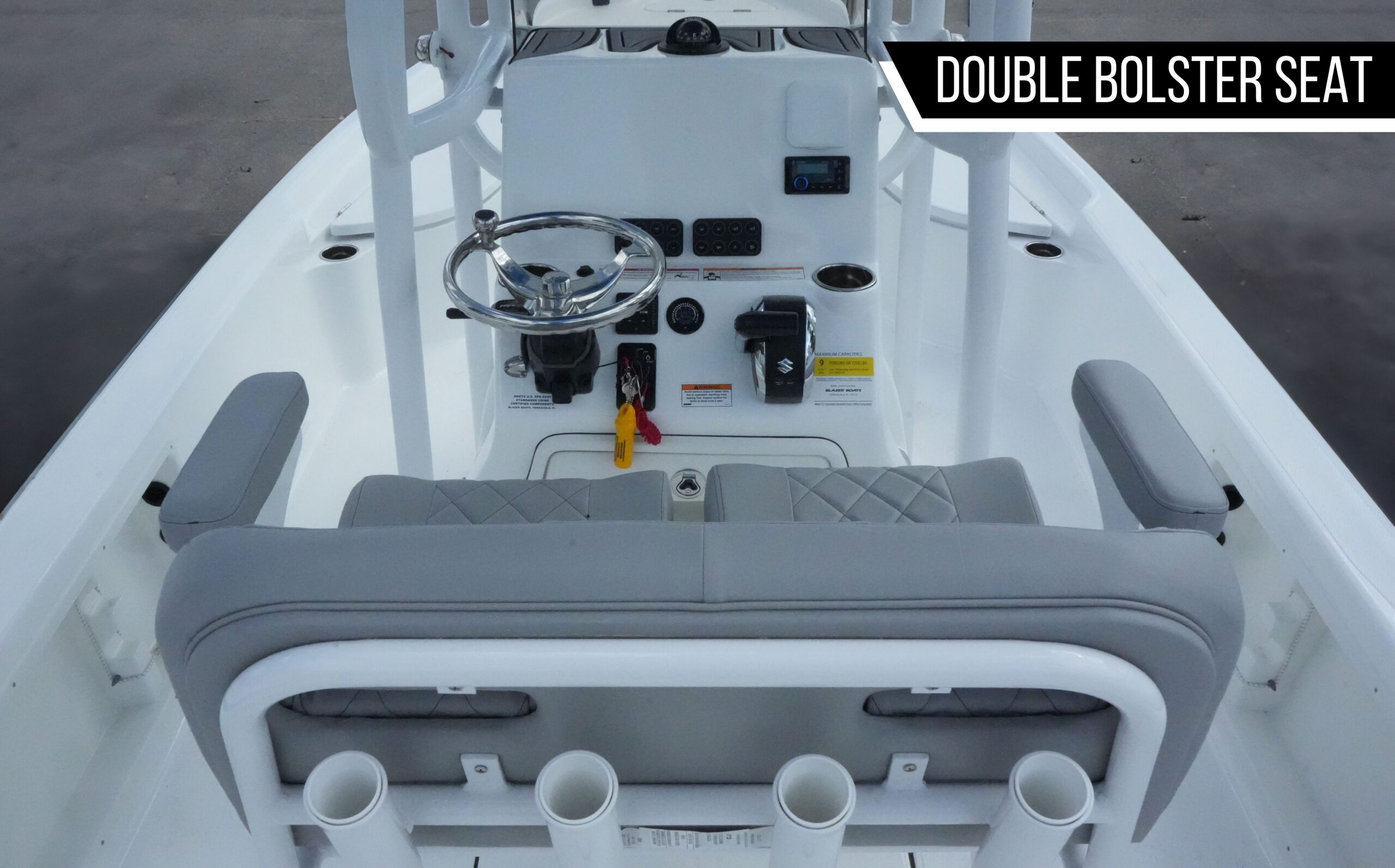

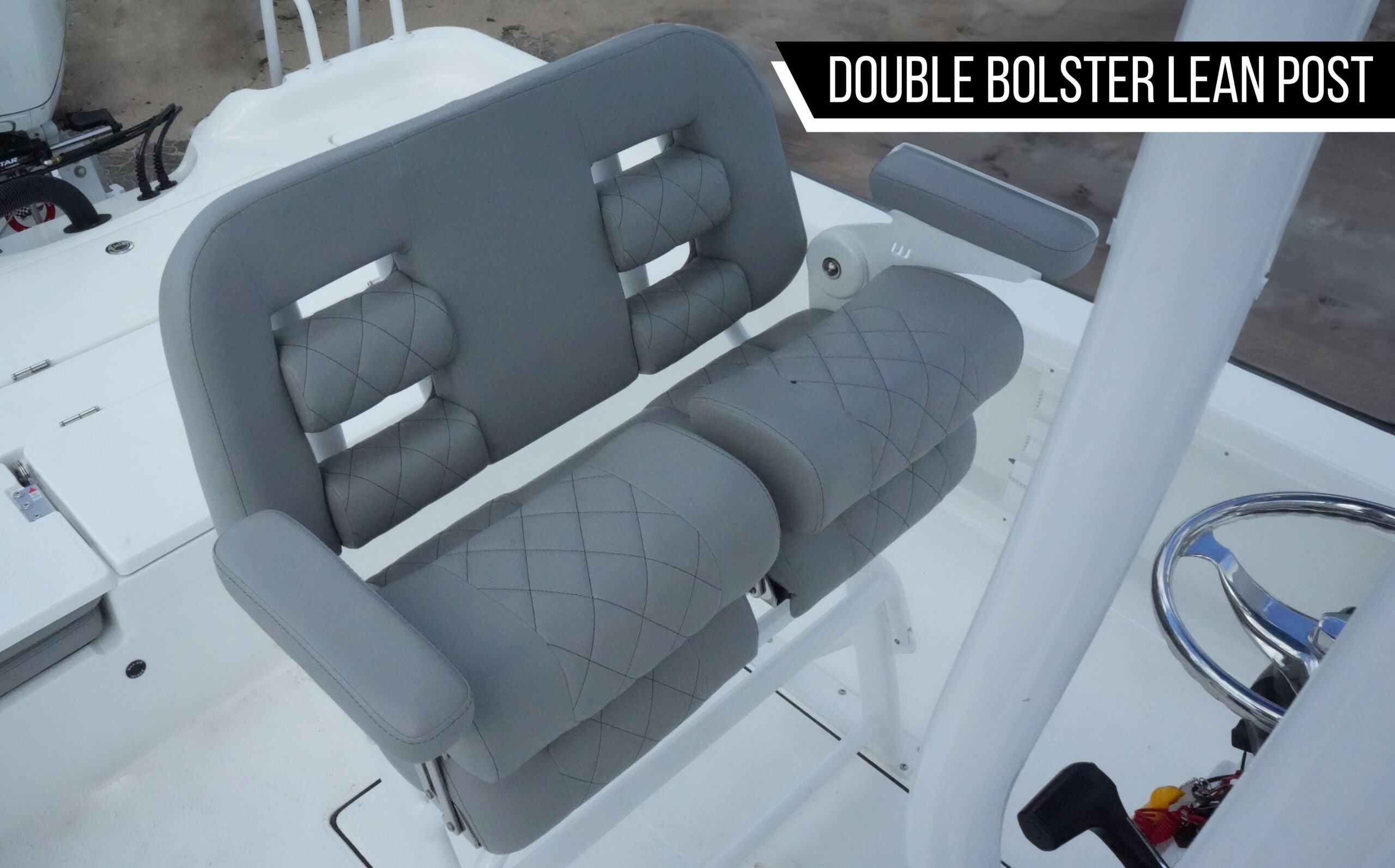

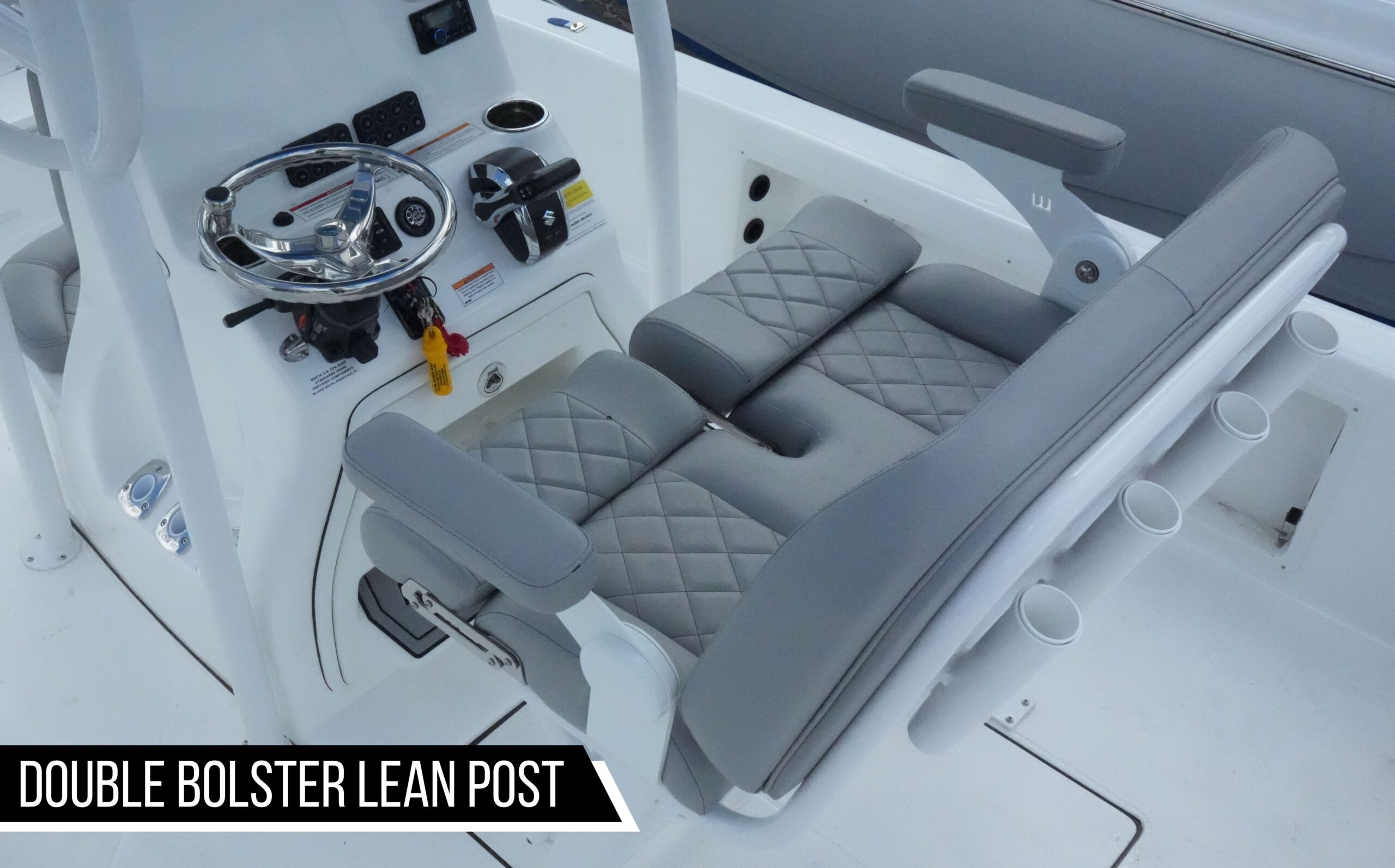

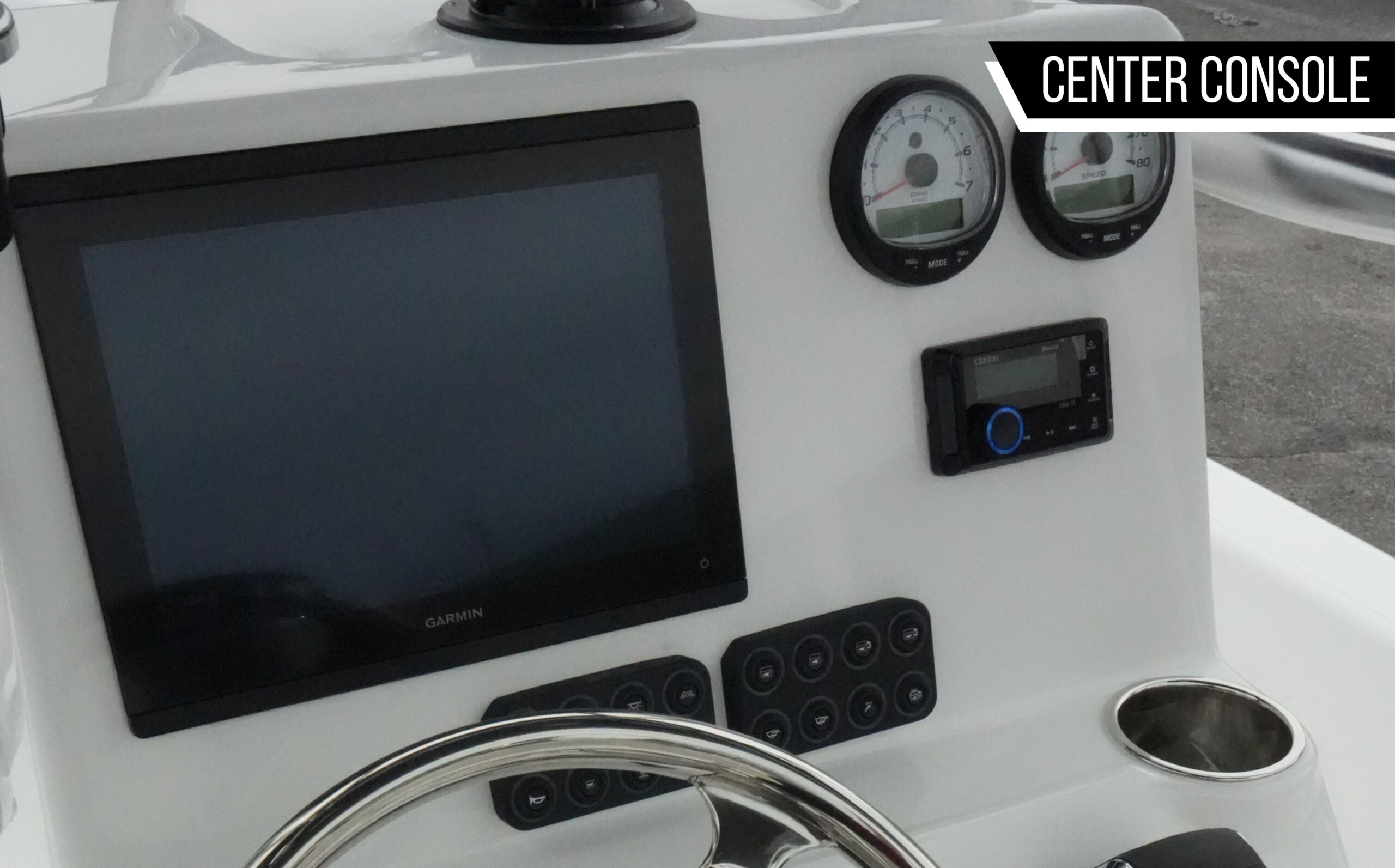

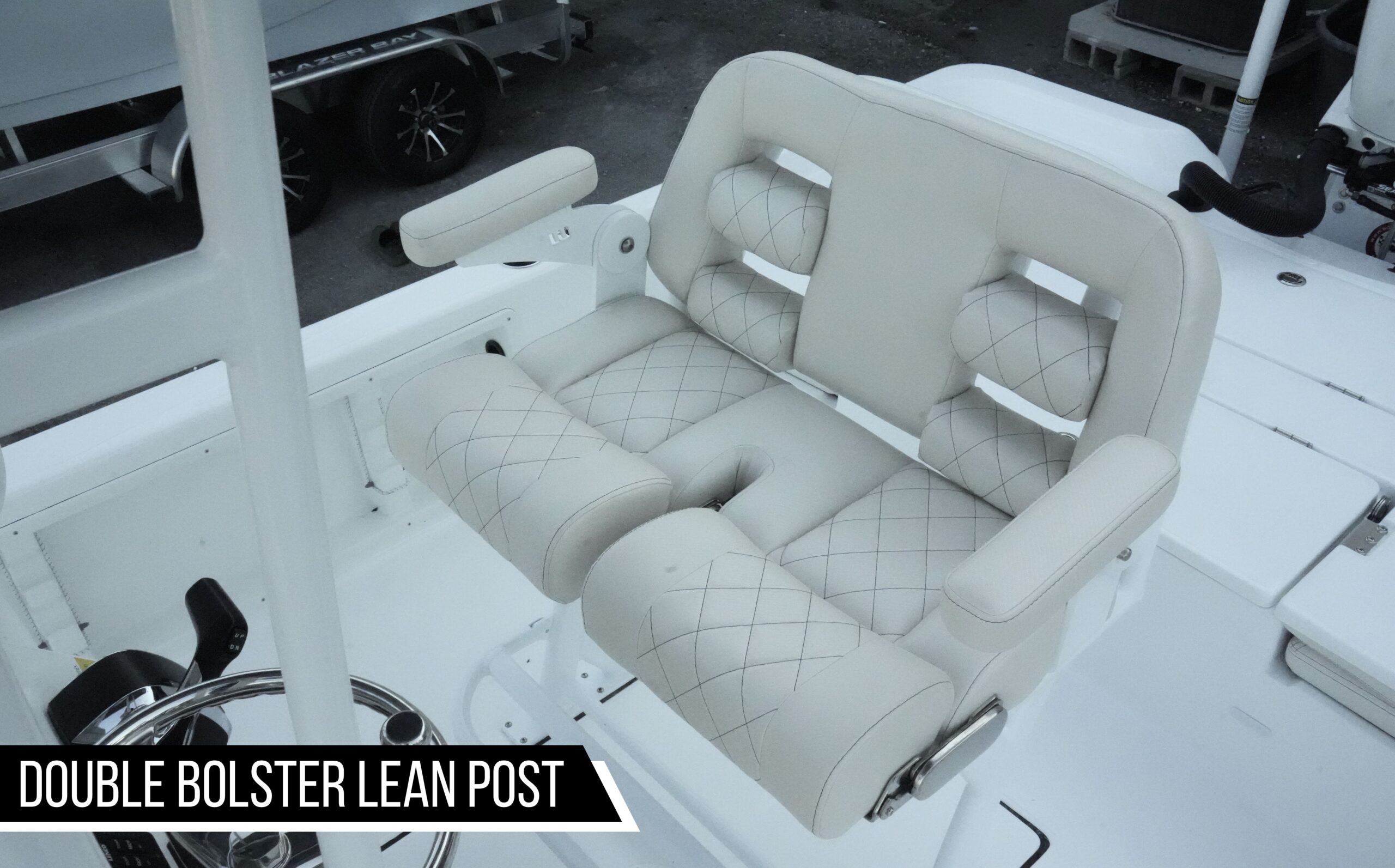

The PureBay 2400 hits on the big three any angler wants out of their bay fishing boat: Storage, flexibility, and comfort. Firstly, there is a ton of storage smartly designed into every nook and cranny of the vessel without sacrificing casting space forward and aft. Not only is there generous dry storage, but there are also insulated fish boxes and two livewells. Then there is the flexibility of this vessel. When it comes to electronics, the ergonomic helm has space for a 16 inch screen and is paired with digital gauges and a compass while still having room for more customizations. The PureBay 2400 is also able to float in water as shallow as one foot but also manage the waves of deeper seas thanks to its 8’6” beam. Lastly, everything is designed to keep the comfort of the passengers in mind. The deluxe leaning post comes with flip bolsters, arm rests, and back rests to keep the captain and first made comfortable. Even something as simple as cupholder placement has been smartly designed within arms reach while still providing plenty of room for additional electronics.
Specifications
Overall Length
24 Feet 5 Inches
LOA W/ Trailer & Motor
TBD
Beam
8 Feet 6 Inches
Draft Fully Loaded
12 Inches
Maximum Capacity
2367 Pounds
Persons Capacity
9
Dry Weight (approx)
3000 Pounds
Maximum HP
350 ***Must Upgrade to Heavy Duty Jackplate***
Fuel Capacity
78 Gallons
Transom Height
25 Inches
Deadrise At Transom
TBD
Interior Freeboard
TBD
Standard
Features
High Quality Marine Grade Color Enhanced Gelcoats.
Solid Fiberglass Rod Reinforced Chines
Sound Dampening Core Reinforced Sides
Molded Reverse Angle Anti Spray Chines
Kevlar Reinforcement Added To Hull
High Speed Lifting Strake Design
Transitional Deadrise Design Gives Maximum Performance and Shallow Draft.
Performance Enhancing Engineered Pocket Tunnel.
Full V Design for Comfort and Performance Capabilities.
All Composite High Density Light Weight Coosa Transom w/ Fiberglass Reinforcement
Molded Trolling Motor Platform

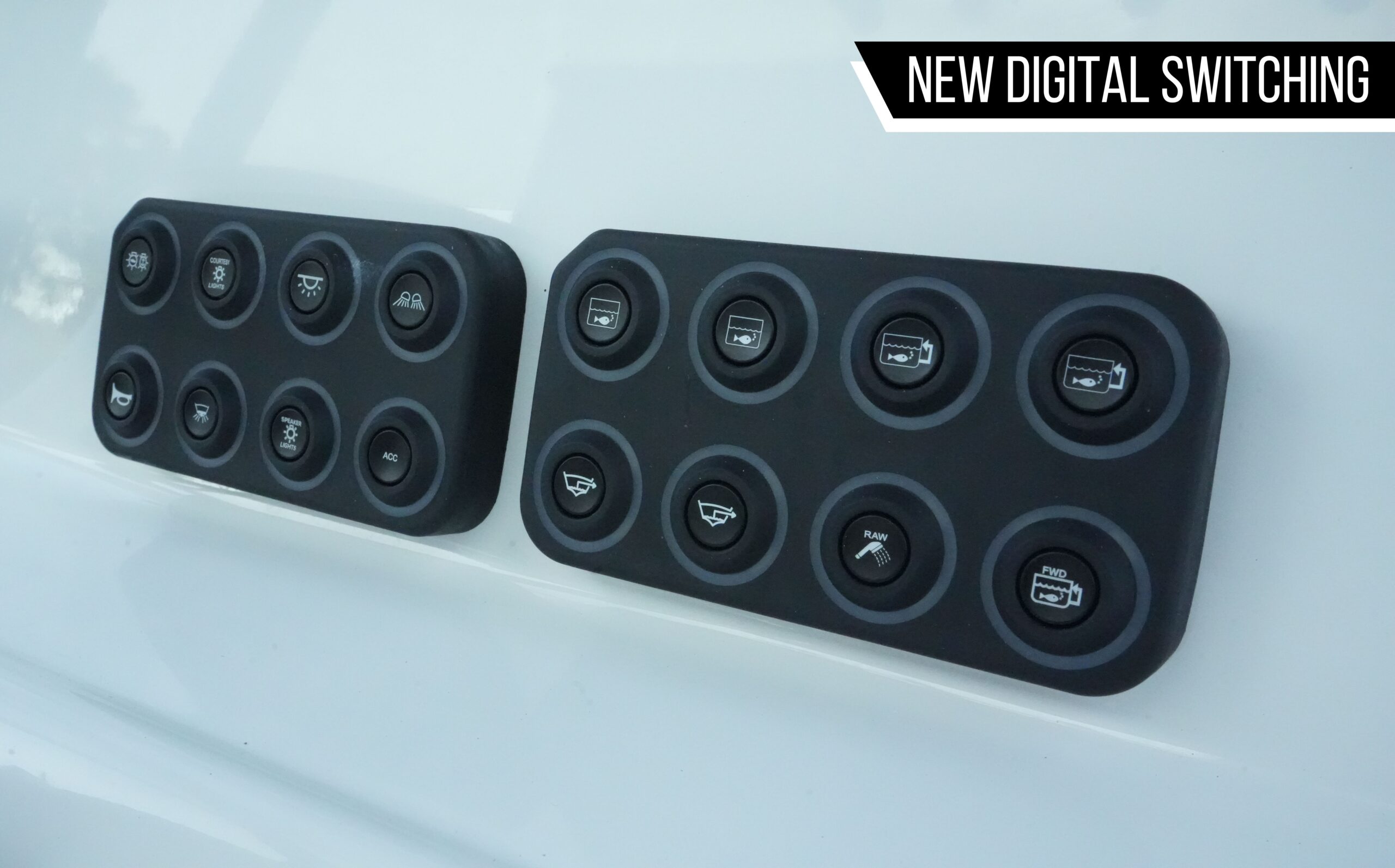

New Networkable Digital Switching System

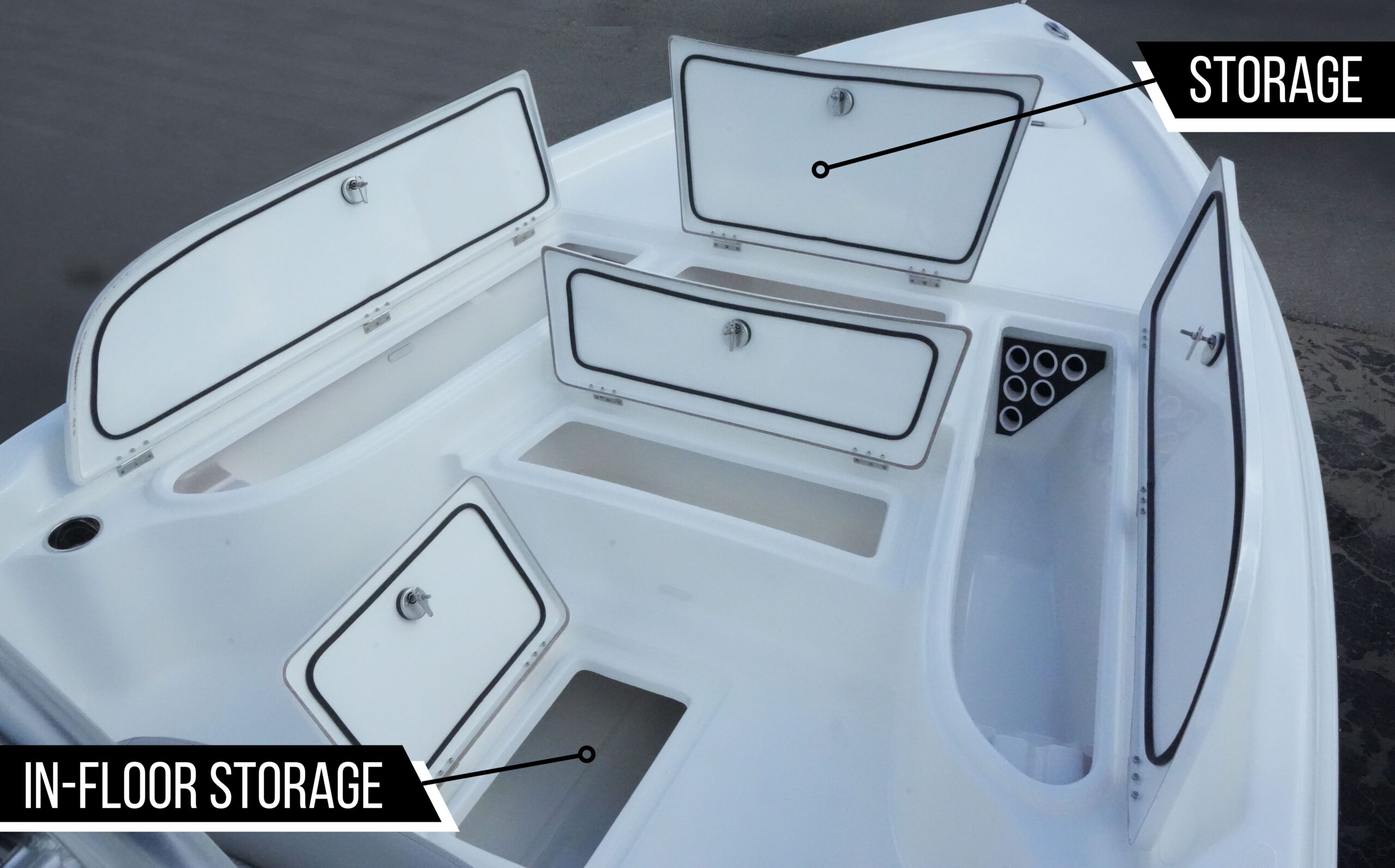

Floor Wet Storage Box w/ Large Open Storage
Anchor Storage (Drained Overboard)
Front Storage Fish Box Molded Lower to Allow for Easy Step onto Deck

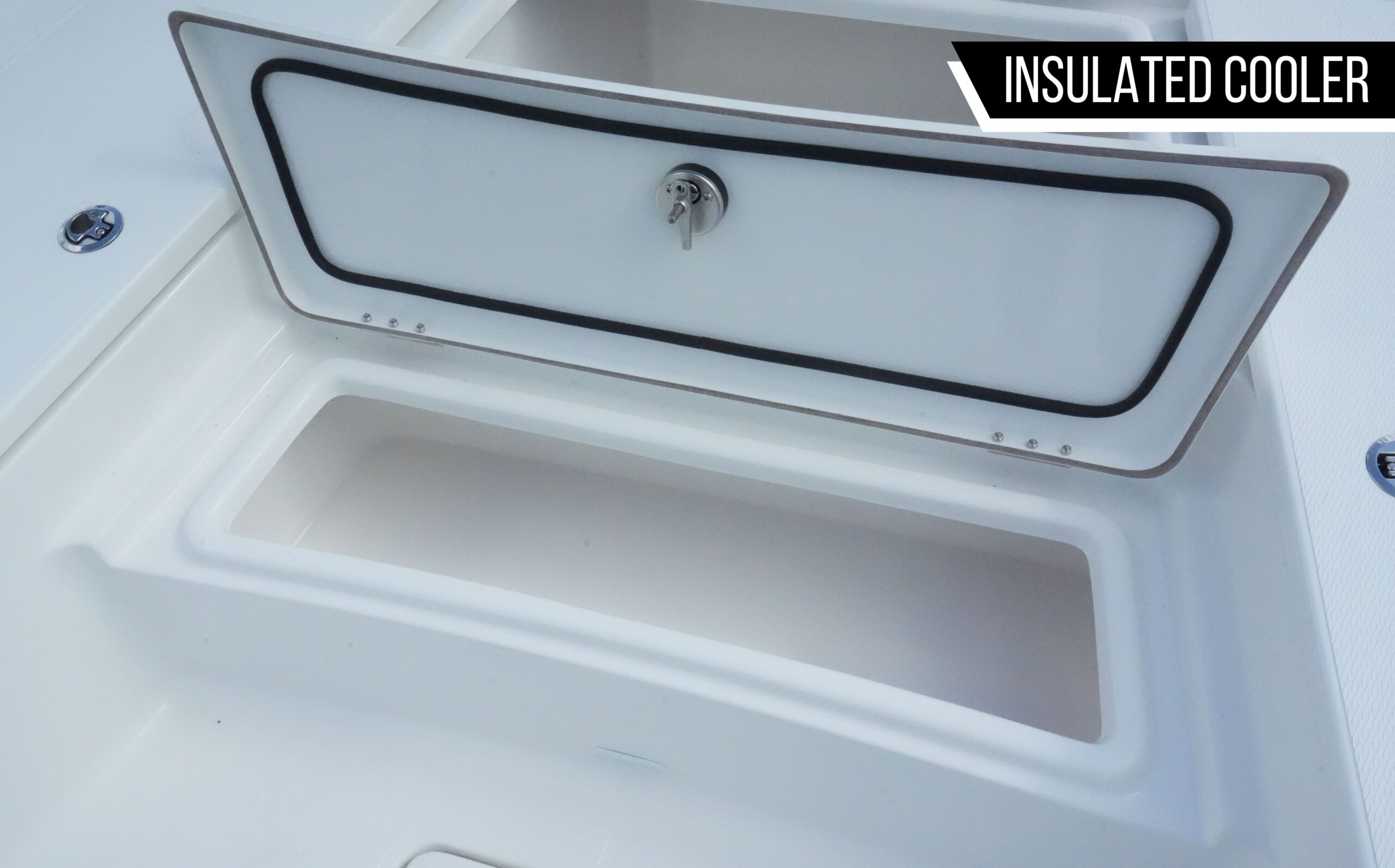

2 Forward Insulated Fish Boxes (Drained Overboard)

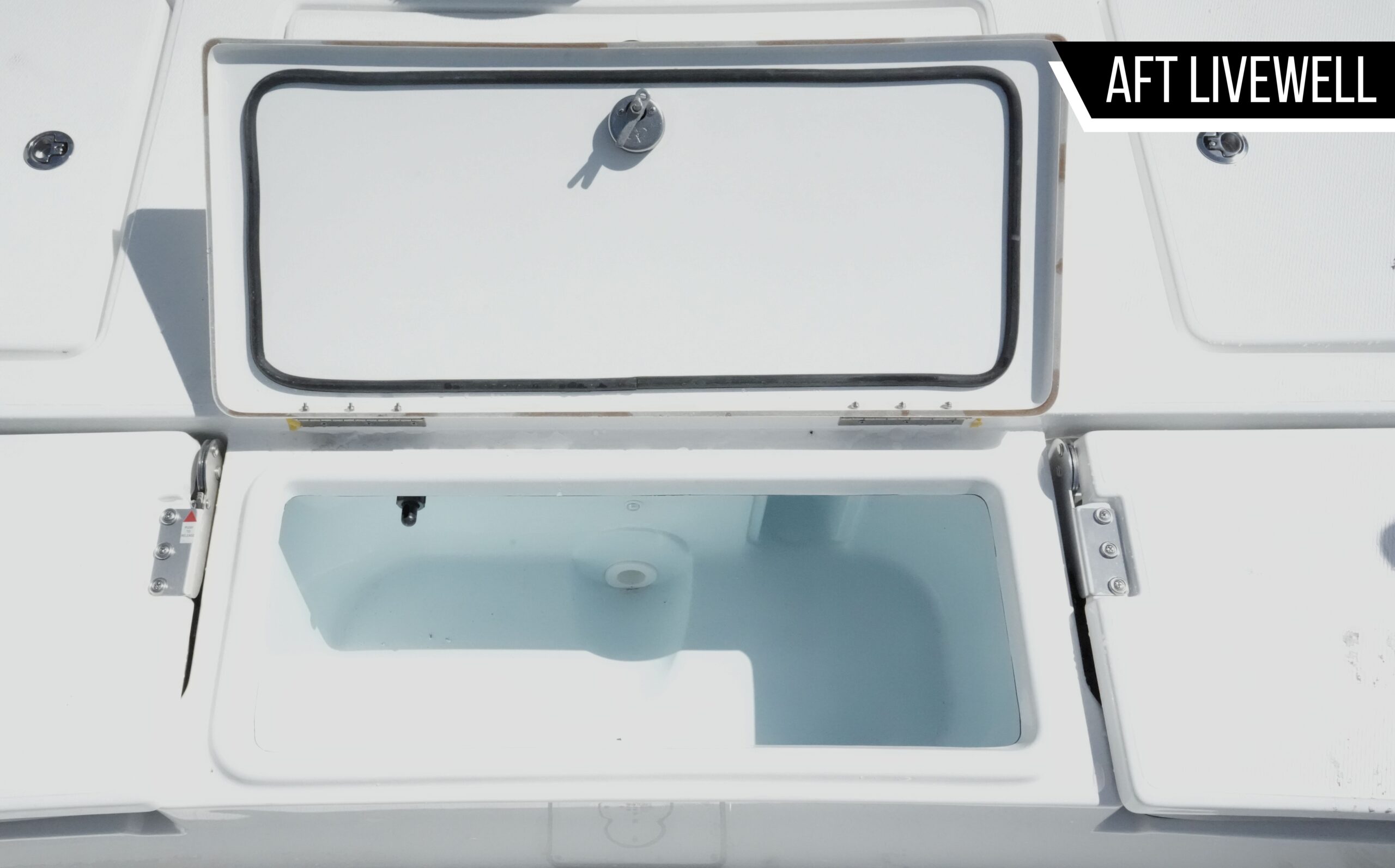

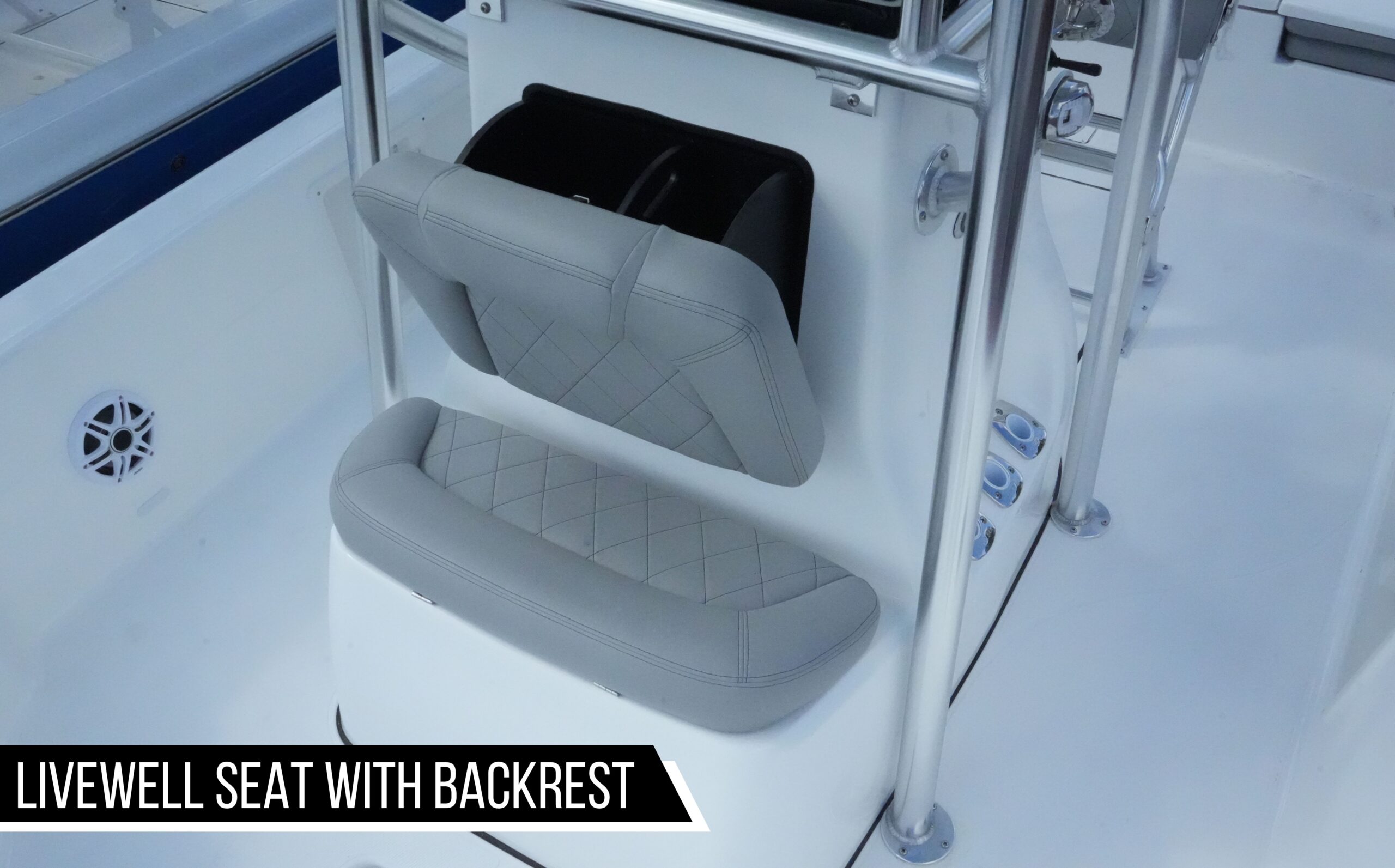

Insulated Rear Catch & Release Livewell

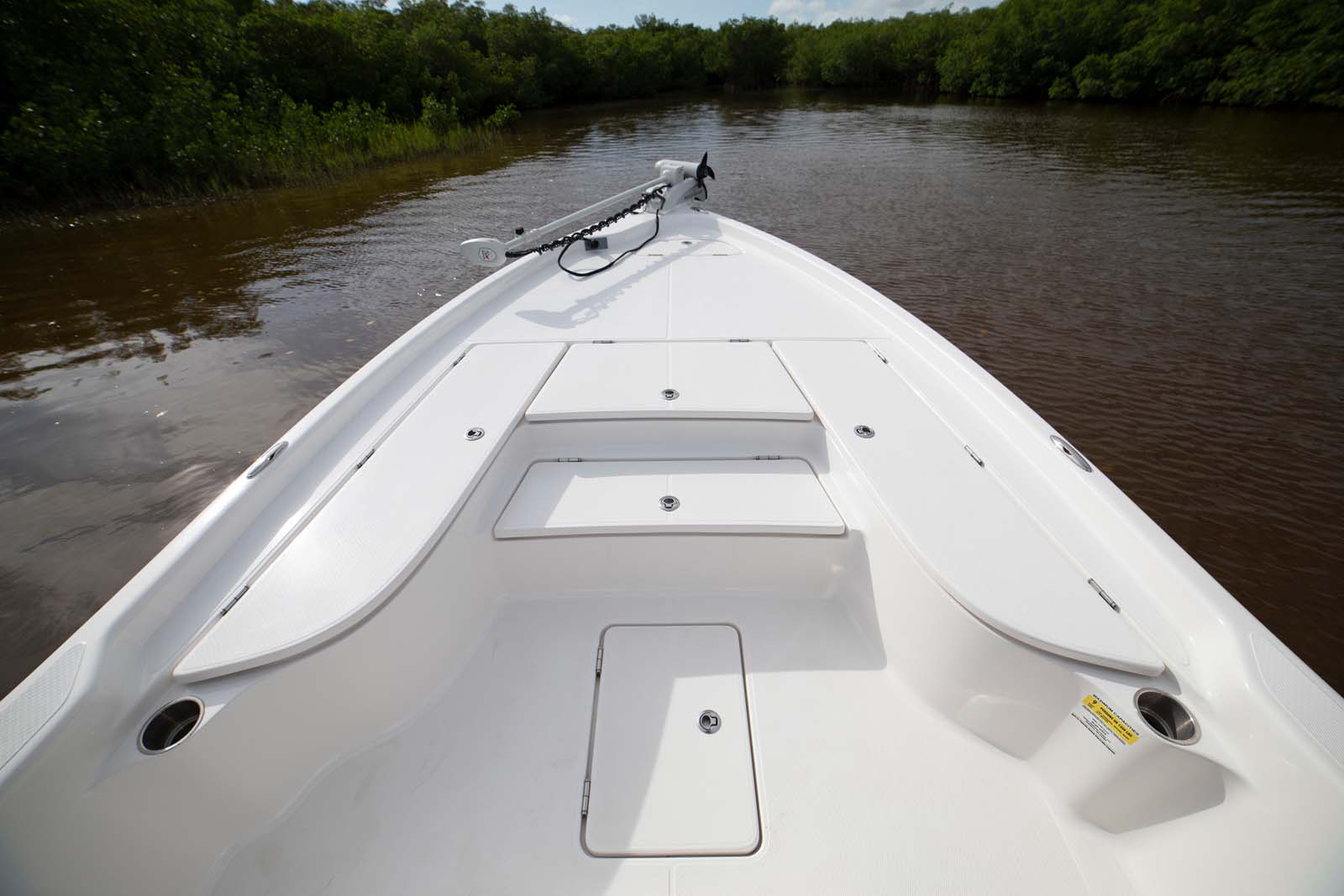

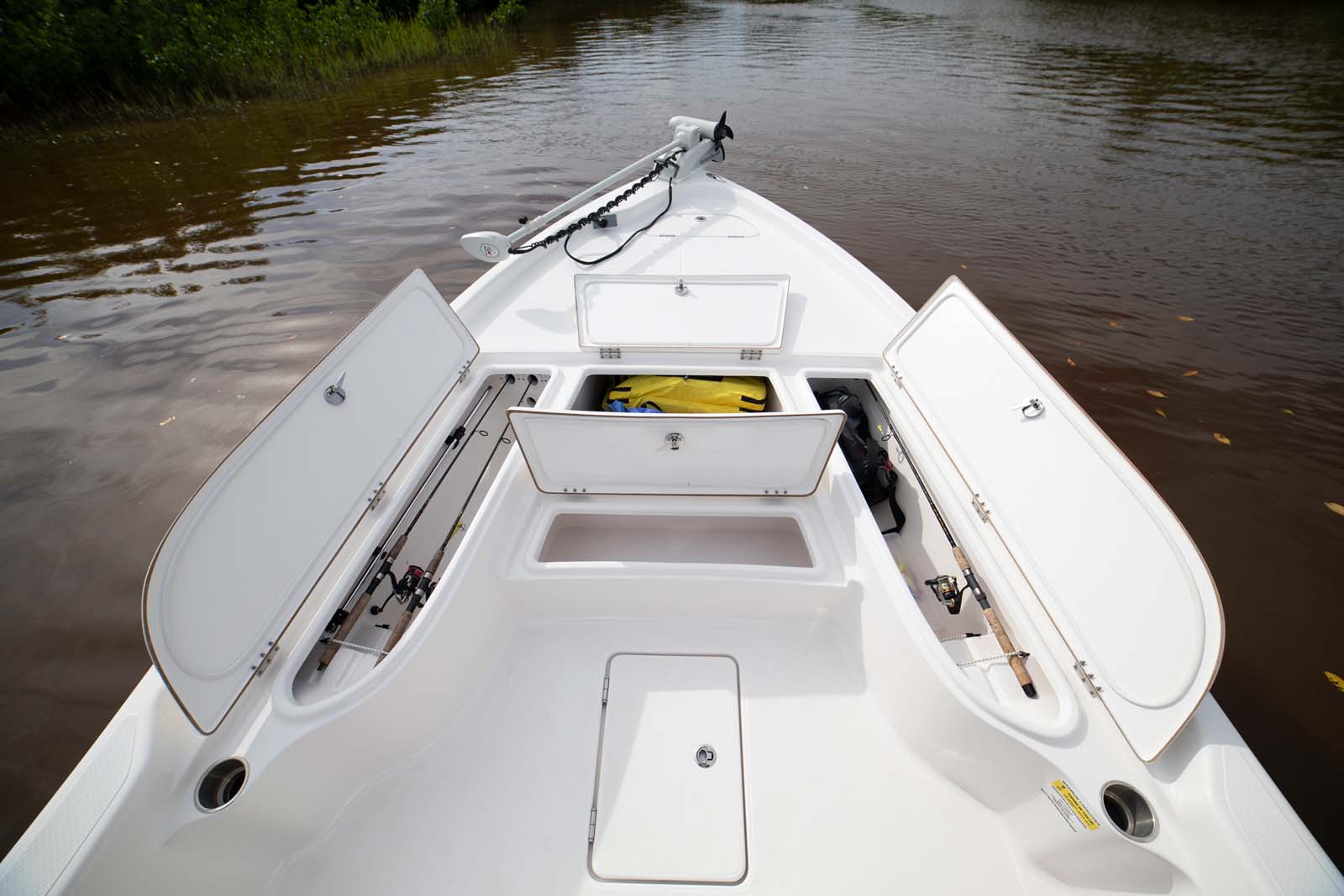

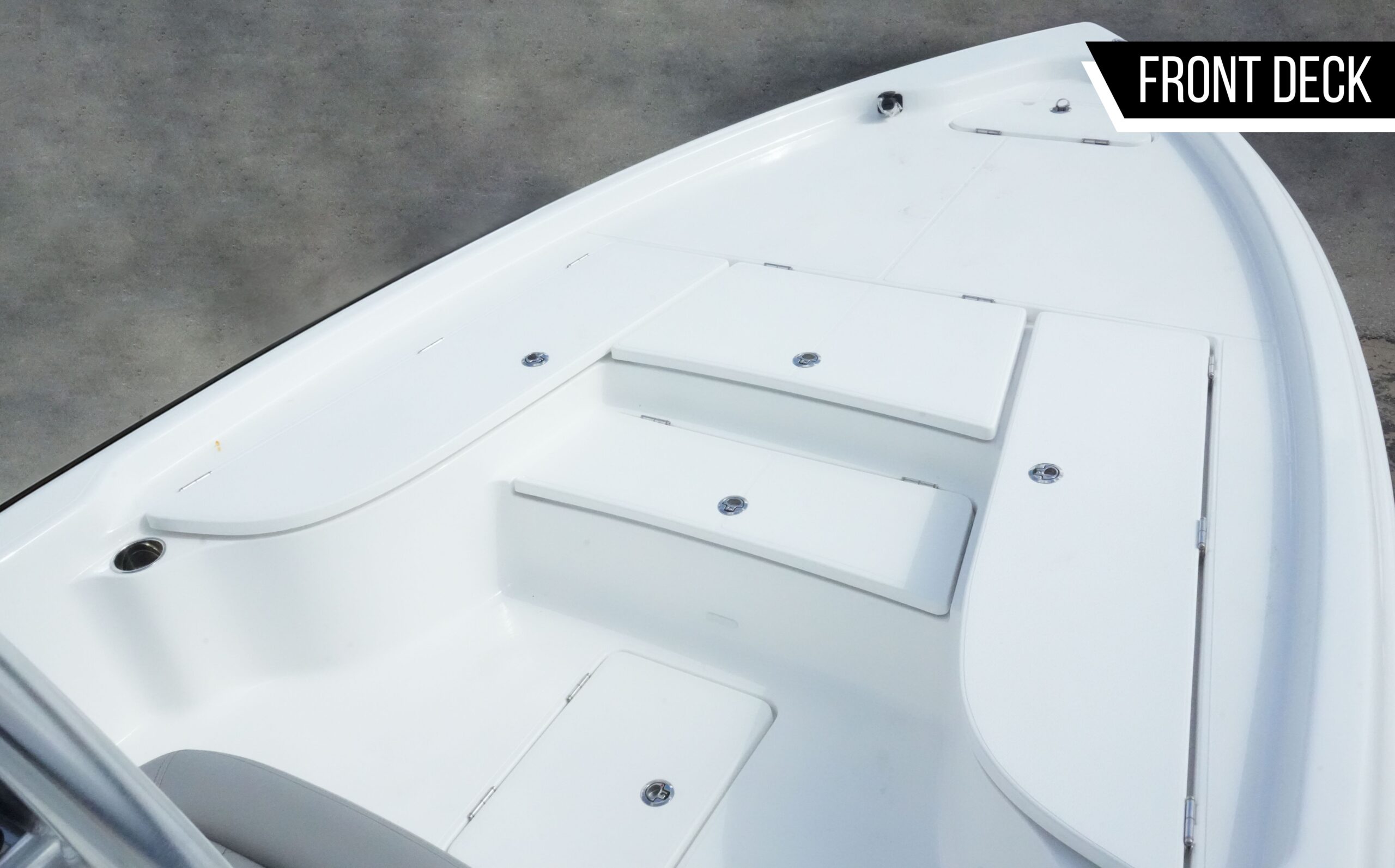

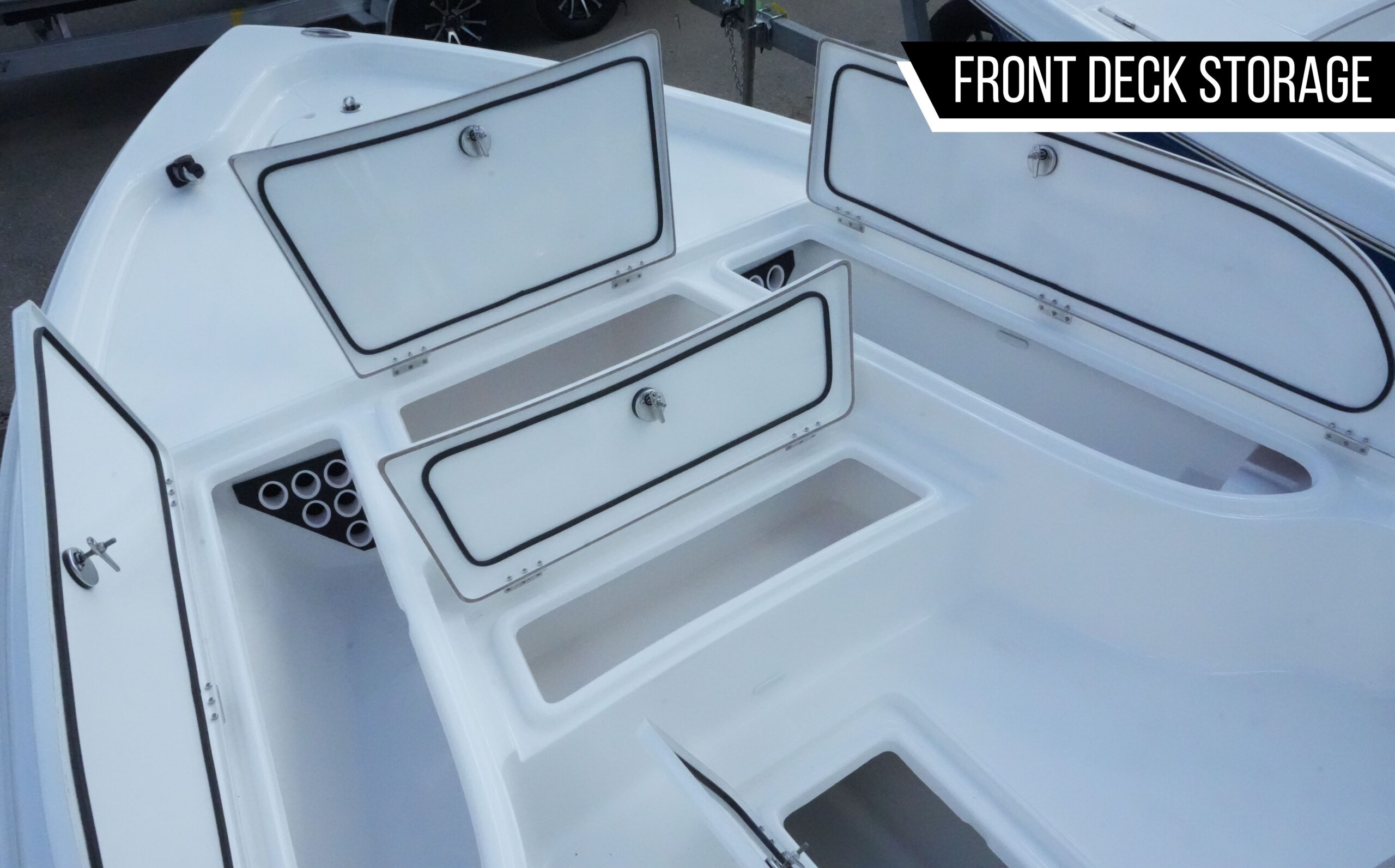

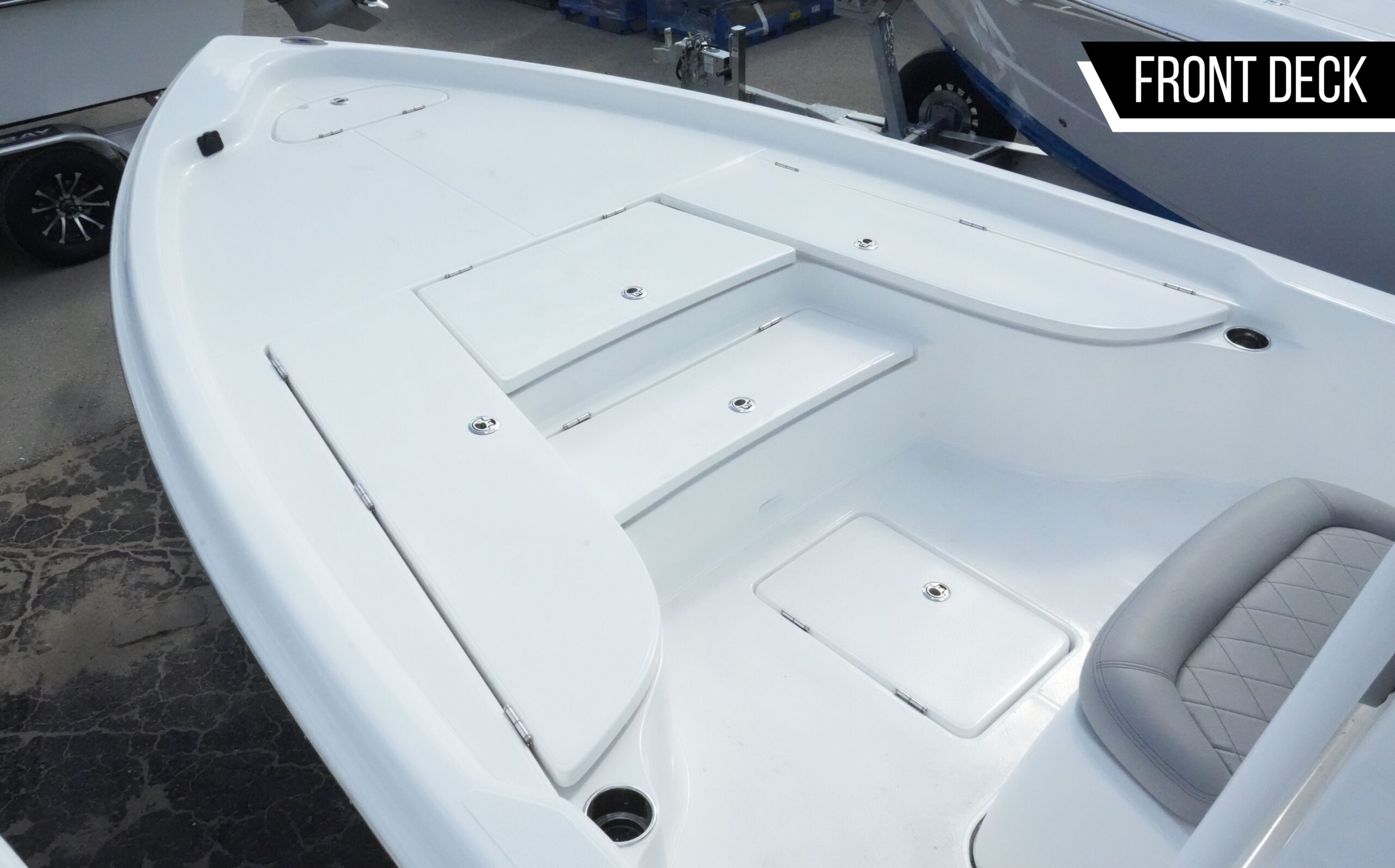

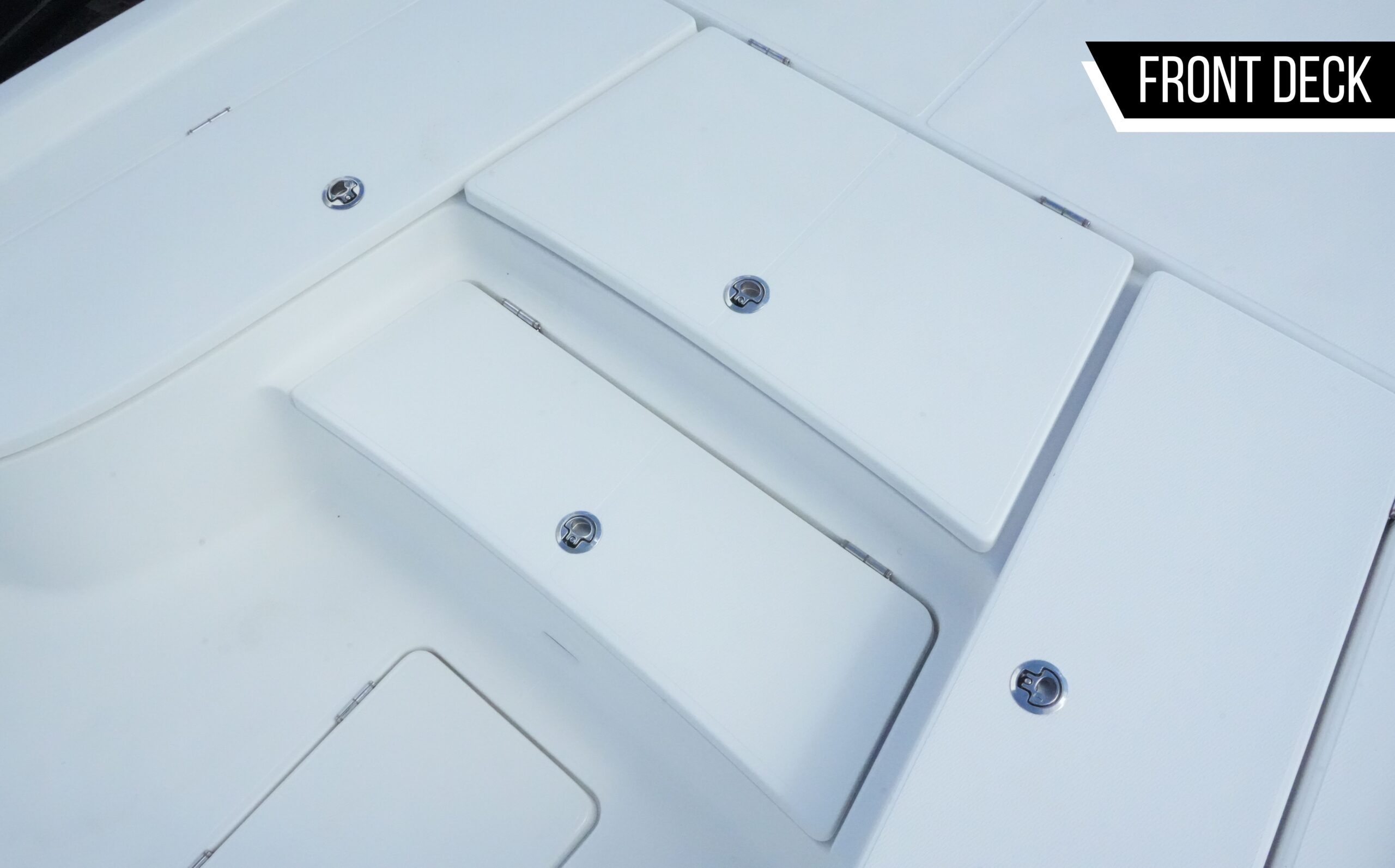

Large Forward Casting Deck w/ Lockable Storage

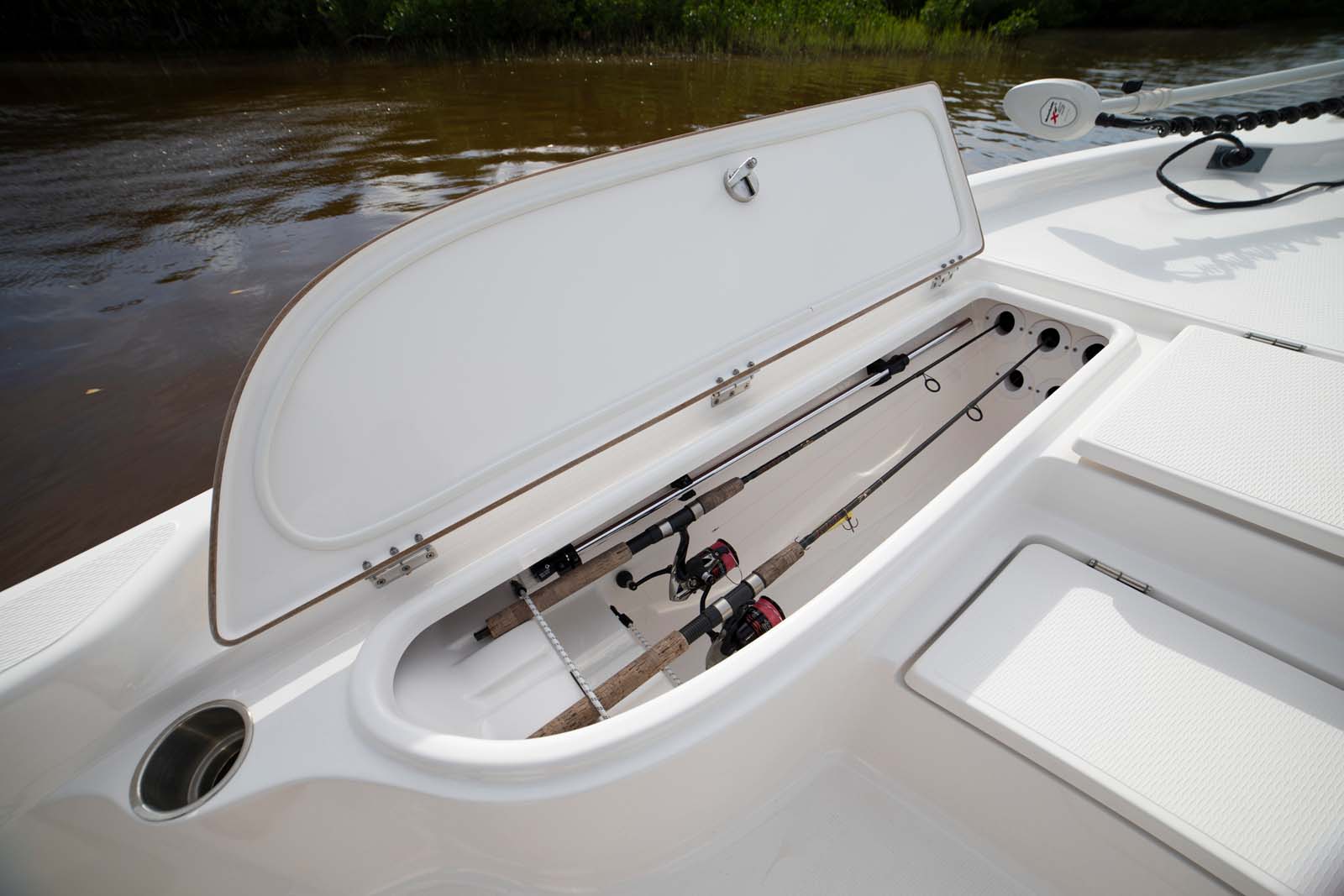

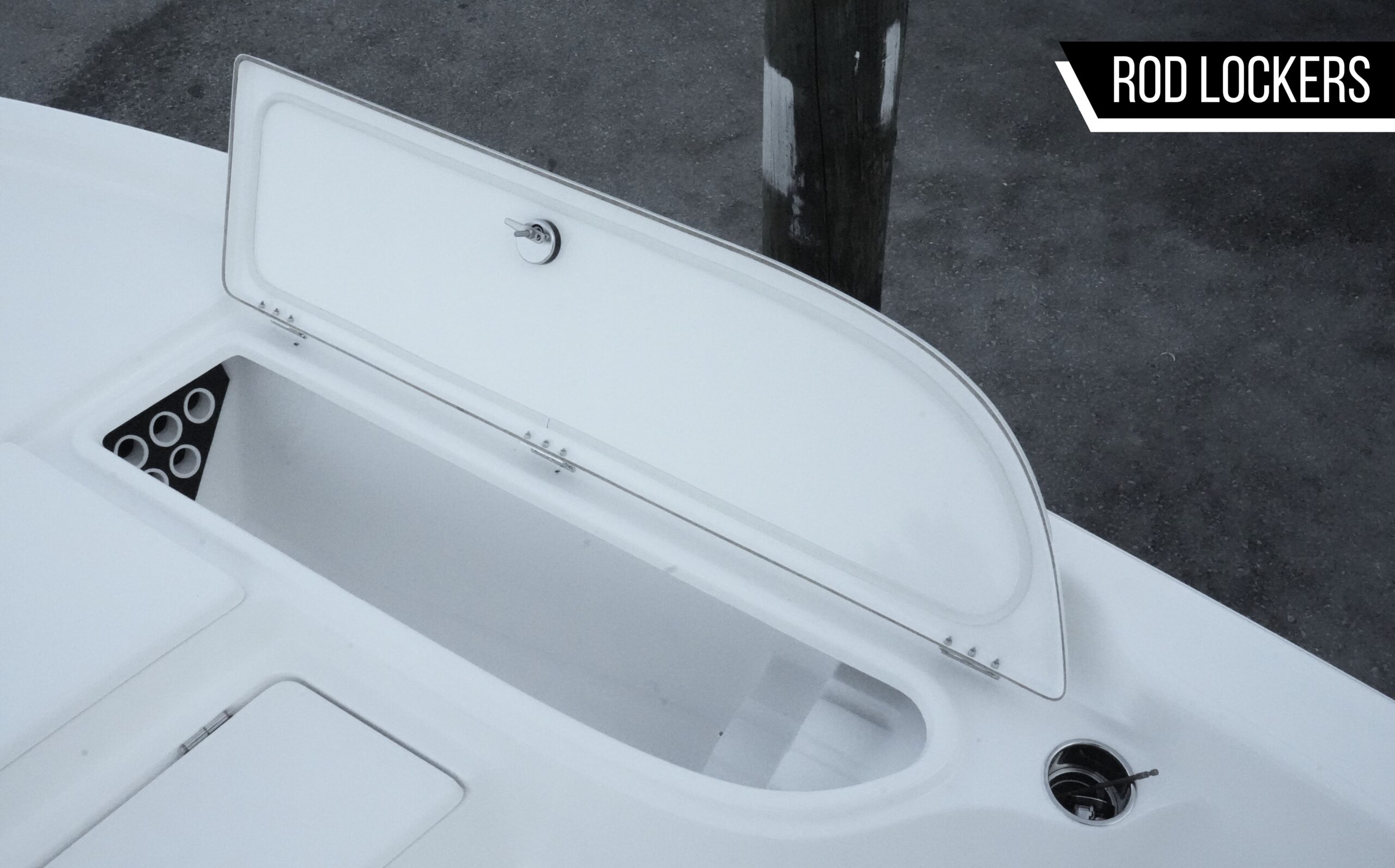

2 Forward Lockable Rod Storage Boxes

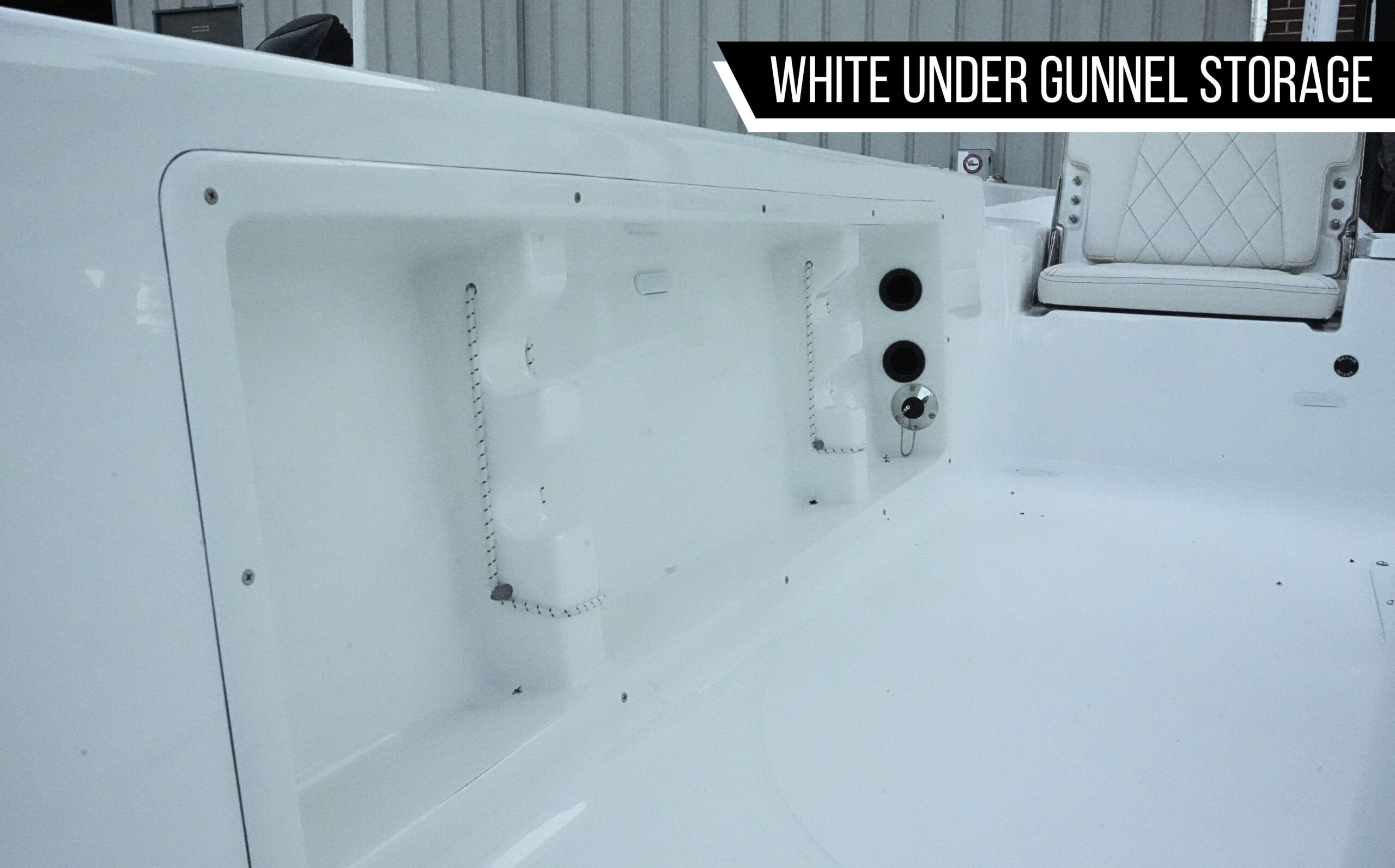

Wide Walk Around Gunnel

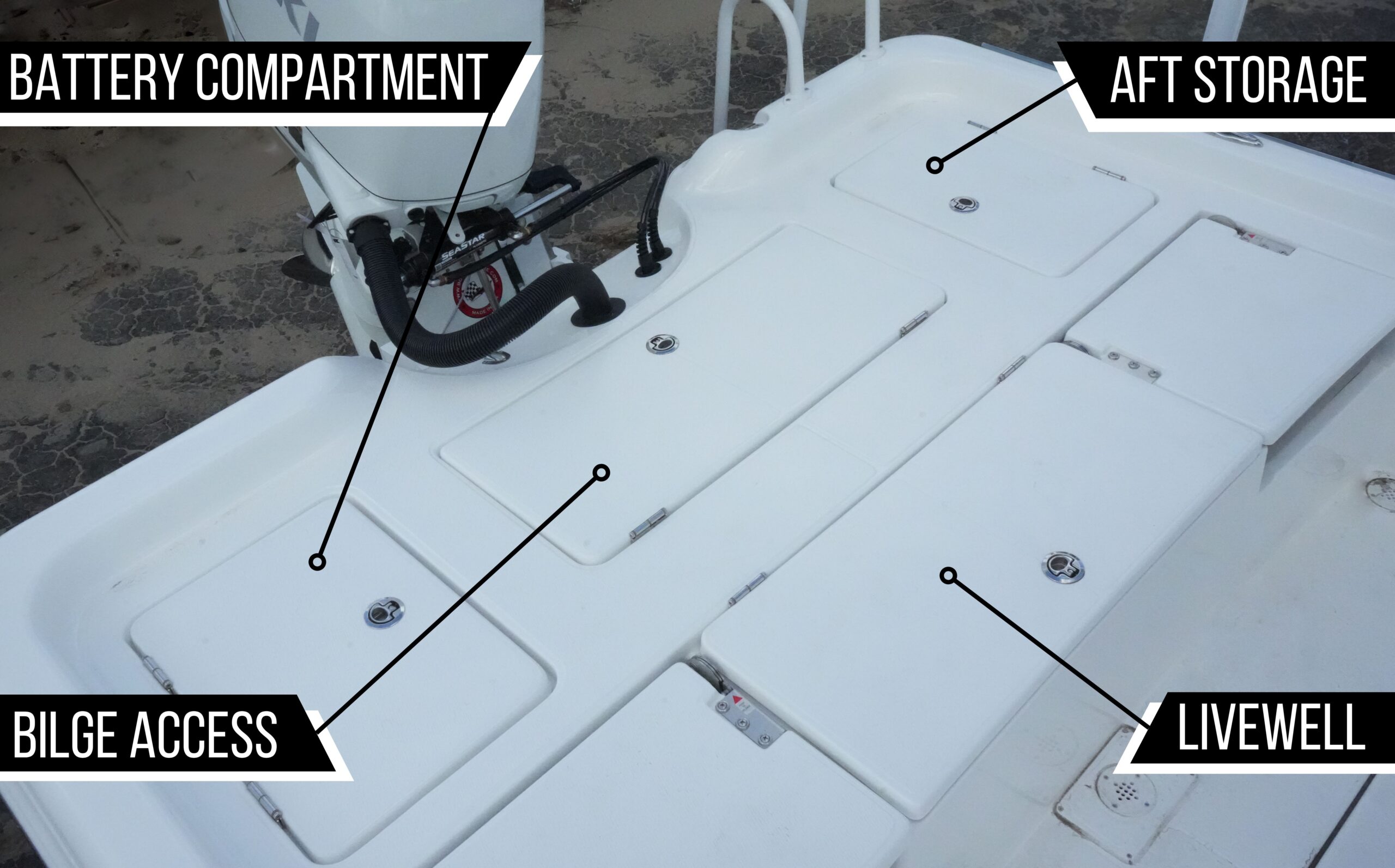

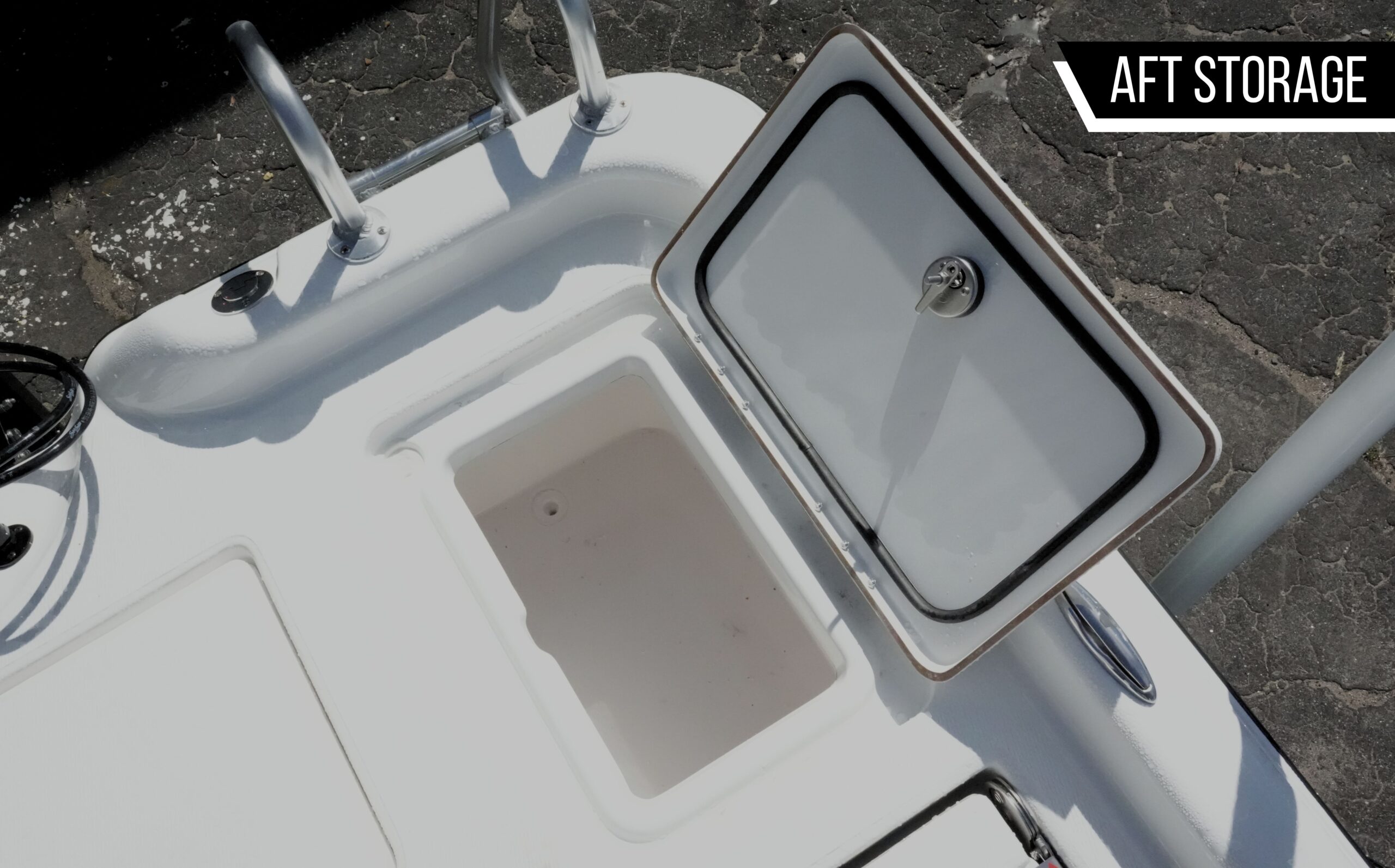

2 Rear Compartments with Finished Storage

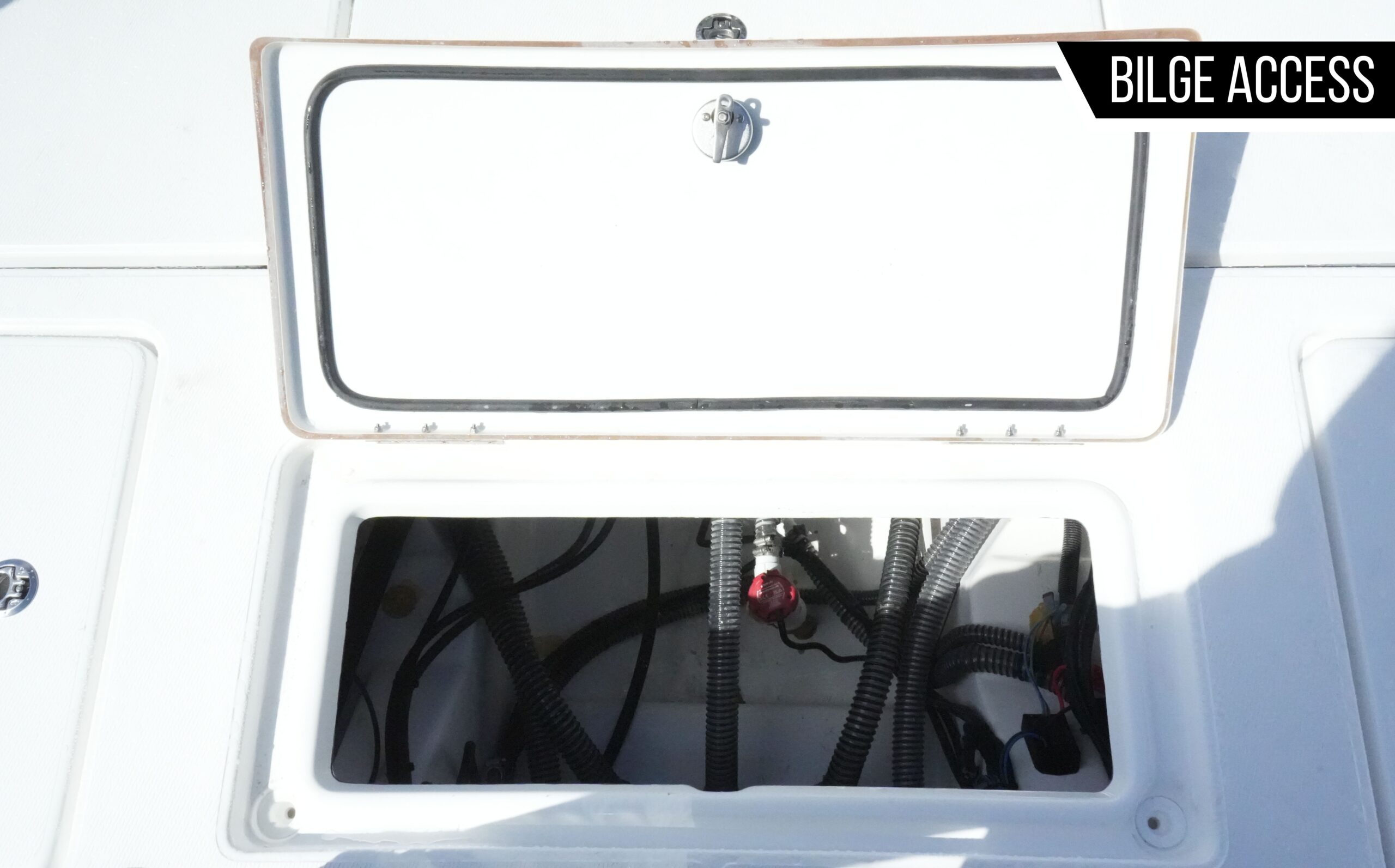

Large Working Access to Finished Bilge

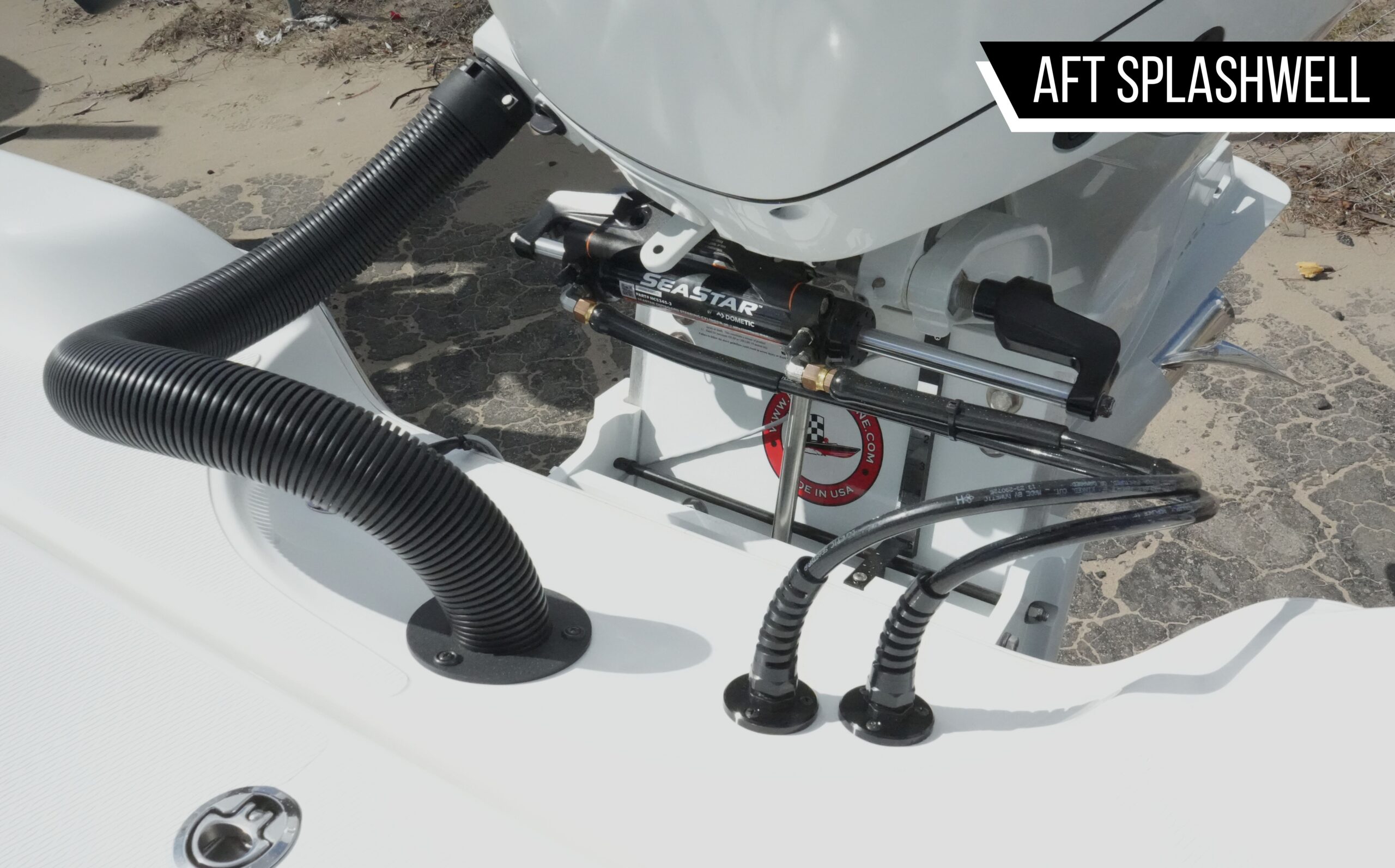

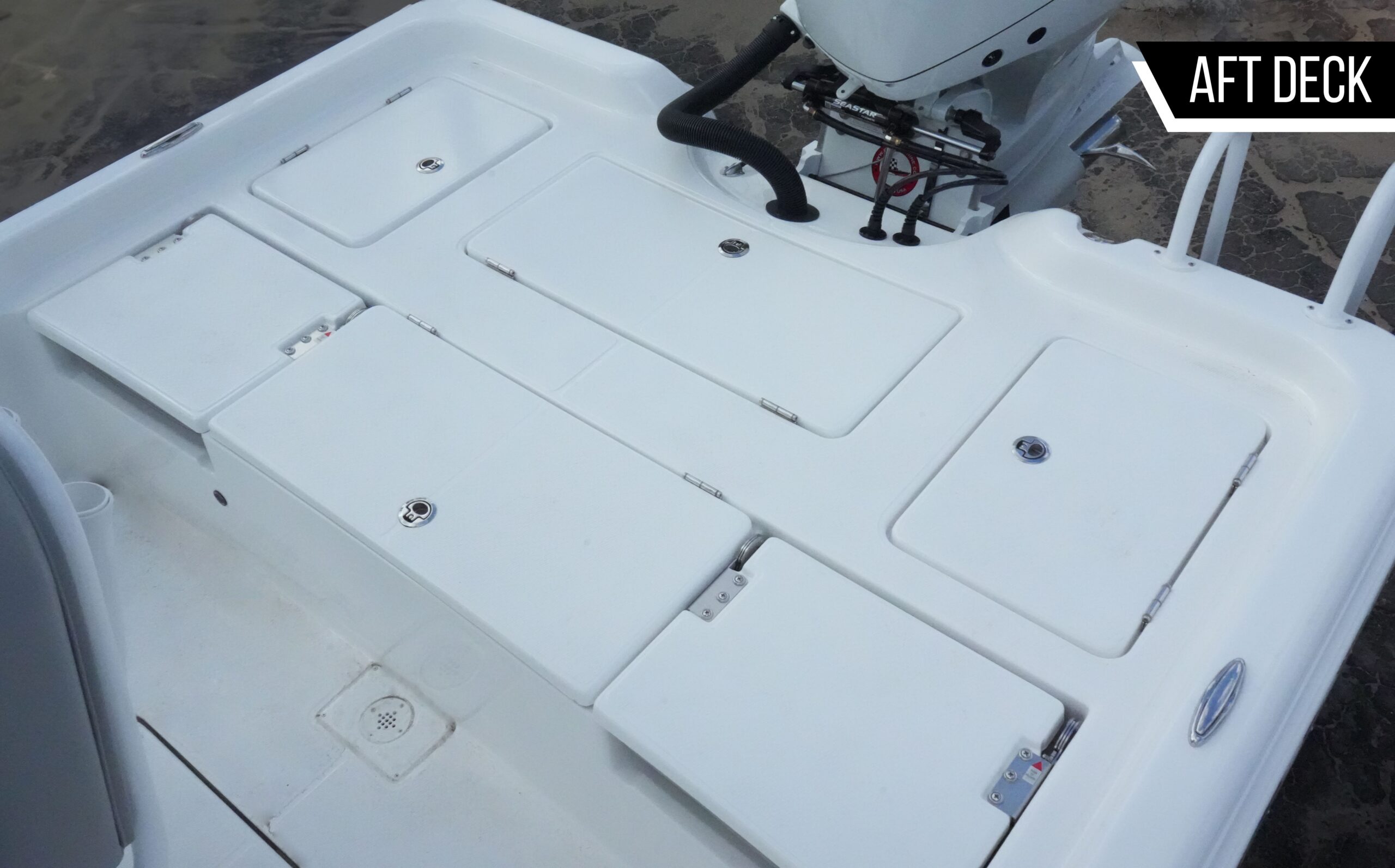

Large Rear Casting Deck with NO SPLASHWELL – Totally Usable Space
Light Weight Closed Molded Finished Lids with Dry Seal Gaskets

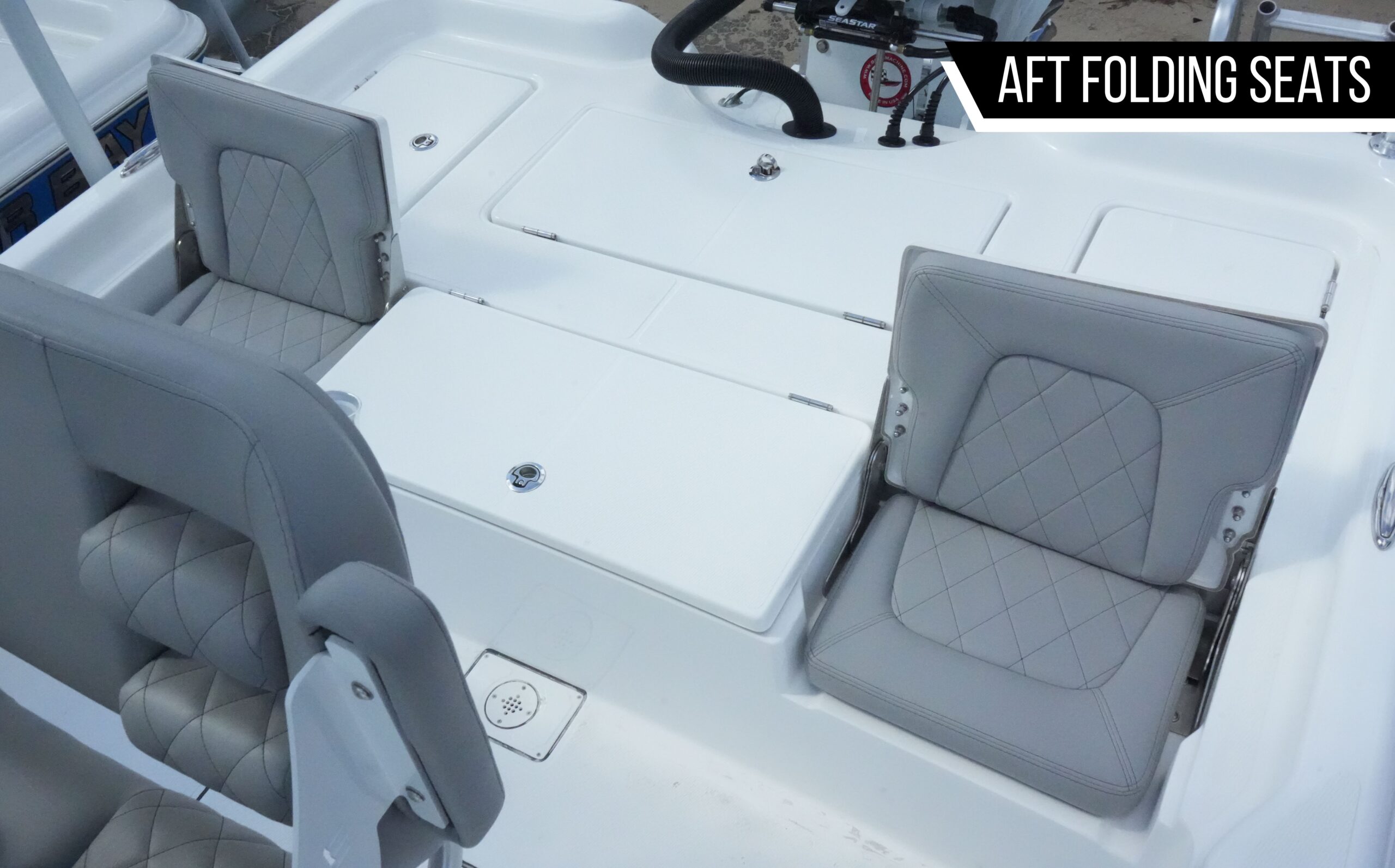

2 Rear Molded Flip Seats w/ Tackle Trays Underneath
In-Line Scuppers on Cockpit Drain Hoses
Recessed Floor Drains Allow all Water to Drain from Floor
Full Transom Design to Enhance Performance and Maximize Rear Deck Space
Dry Floor Drain System (Center Cavity w/ Bilge Pump to Allow Customer to Drain Water Off the Floor Using a Pump)
Exclusive Non Glare Wave Grip Non-Skid w/ Easy Clean Feature
Forward Lockable Rod Storage Box
All Composite Construction
Trolling Motor Pre-Wiring (Run to Console) and w/ Trolling Motor Plug & Panel
Foam Filled Flotation
Saltwater Resistant Switch Panel w/ Easy Access Circuit Breakers
Integrated Fuel Tank Access Door Built In
Deutsche Electrical Connections (Saltwater Resistant)
Stainless Steel Thru-Hull Fittings
Stainless Steel Fasteners
Stainless Steel Compression Latches
Stainless Steel Gunwale Rubrail
Shut Off Ball Valve on Aerator Inlets for Easy Pump Changes on the Water
Stainless Steel Pull-up Cleats
Stainless Steel 1/2″ Bow & Stern Eyes
Nylon Washers to Help Prevent Corrosion
Stainless Steel Cup Holders
Bow Trim/Trolling Motor Plug Panel
High Speed Aerator Water Pickup
Auto Bilge
Side Wall Recessed Rodholders
Stainless Steel Gas Fill
Lenco Trim Tabs
1 1/2″ Livewell Overflow Drain
1 1/2″ Fishbox Drains

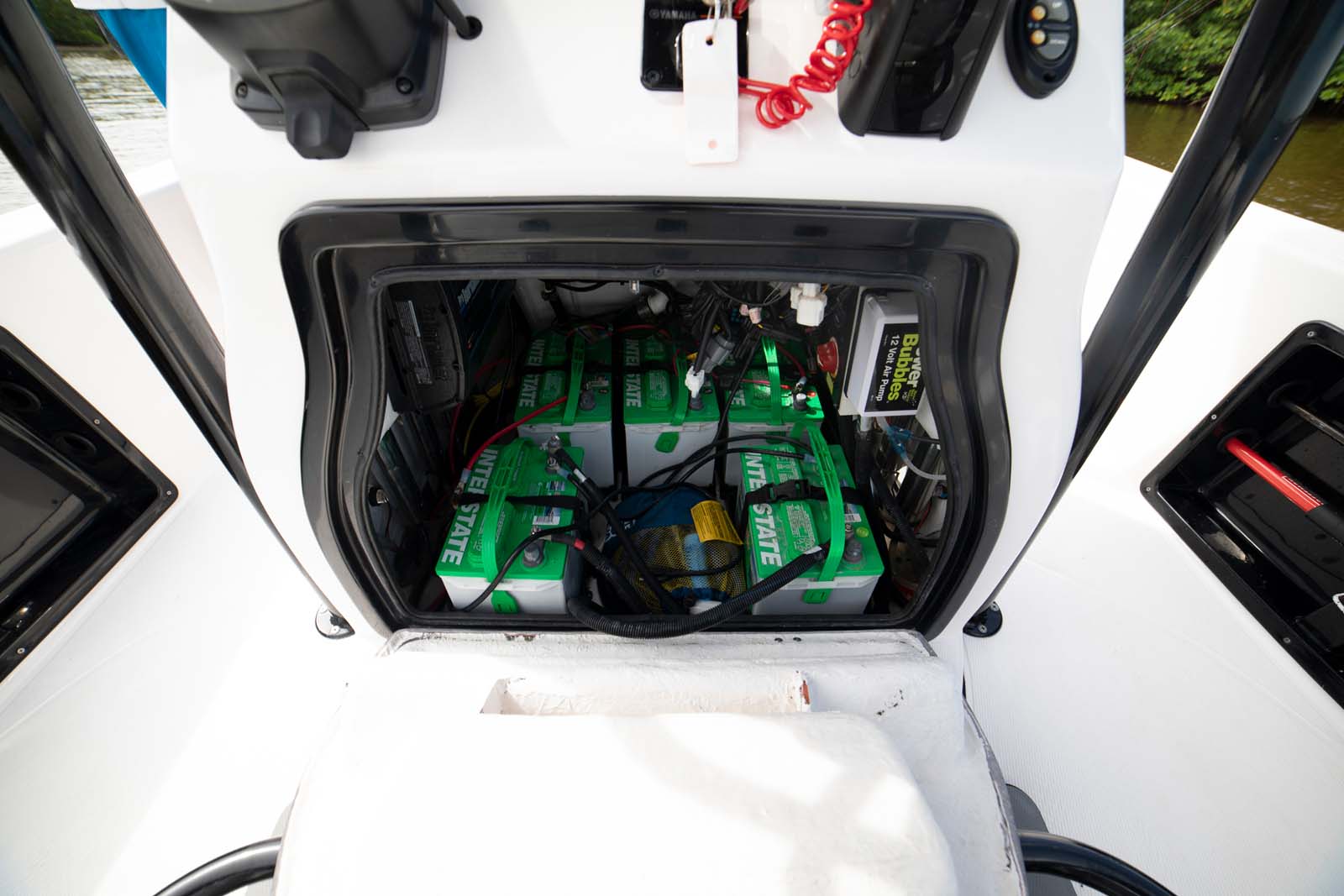

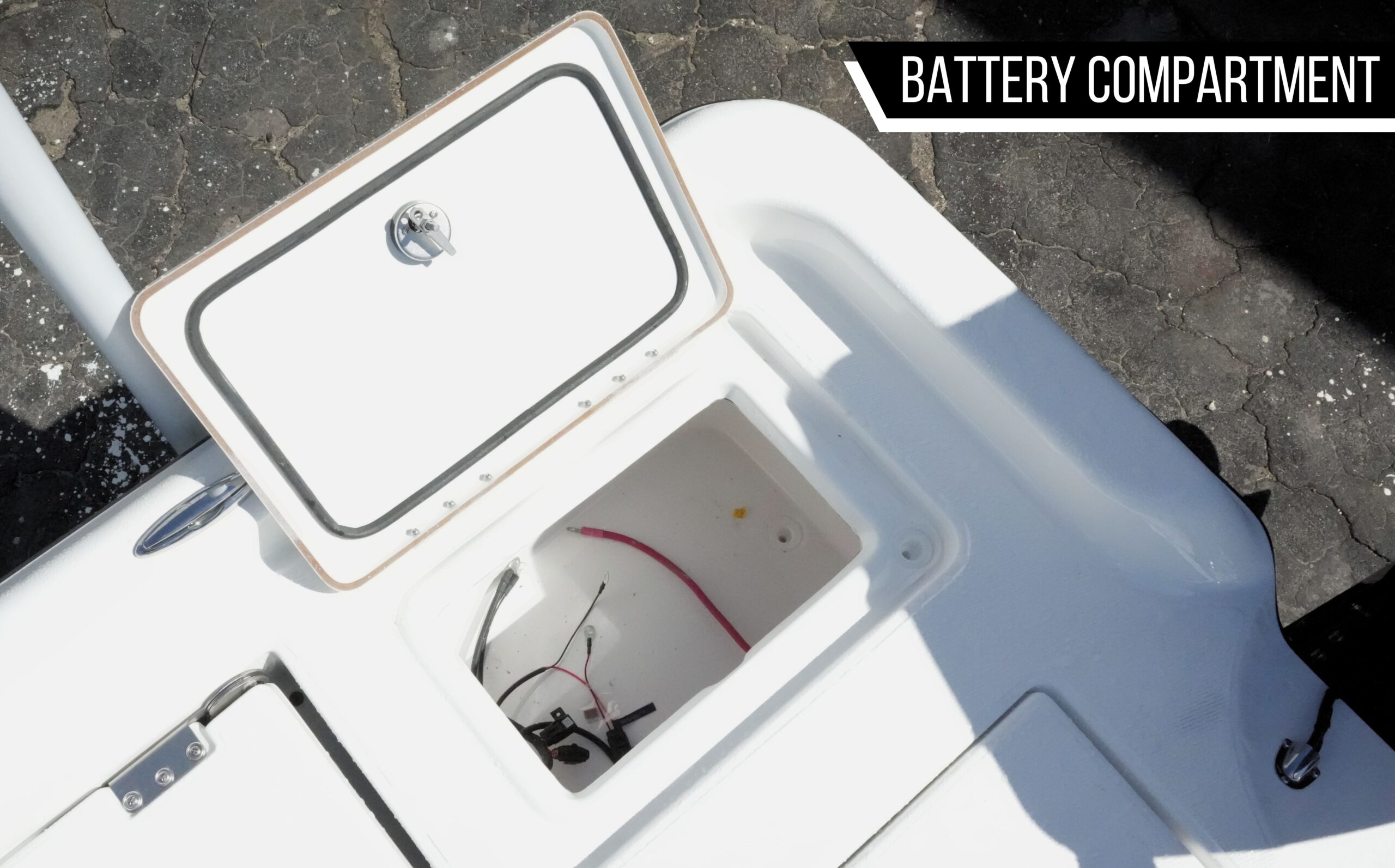

Dual Battery Shut-Off Switch
1 1/2″ Front Livewell Drain
2 Rear FlipSeats with Full Back Pad Support
RSD Cockpit Drains (Remote Self Drain)
Raw Water Washdown Standard
Tilt Hydraulic SeaStar Steering System

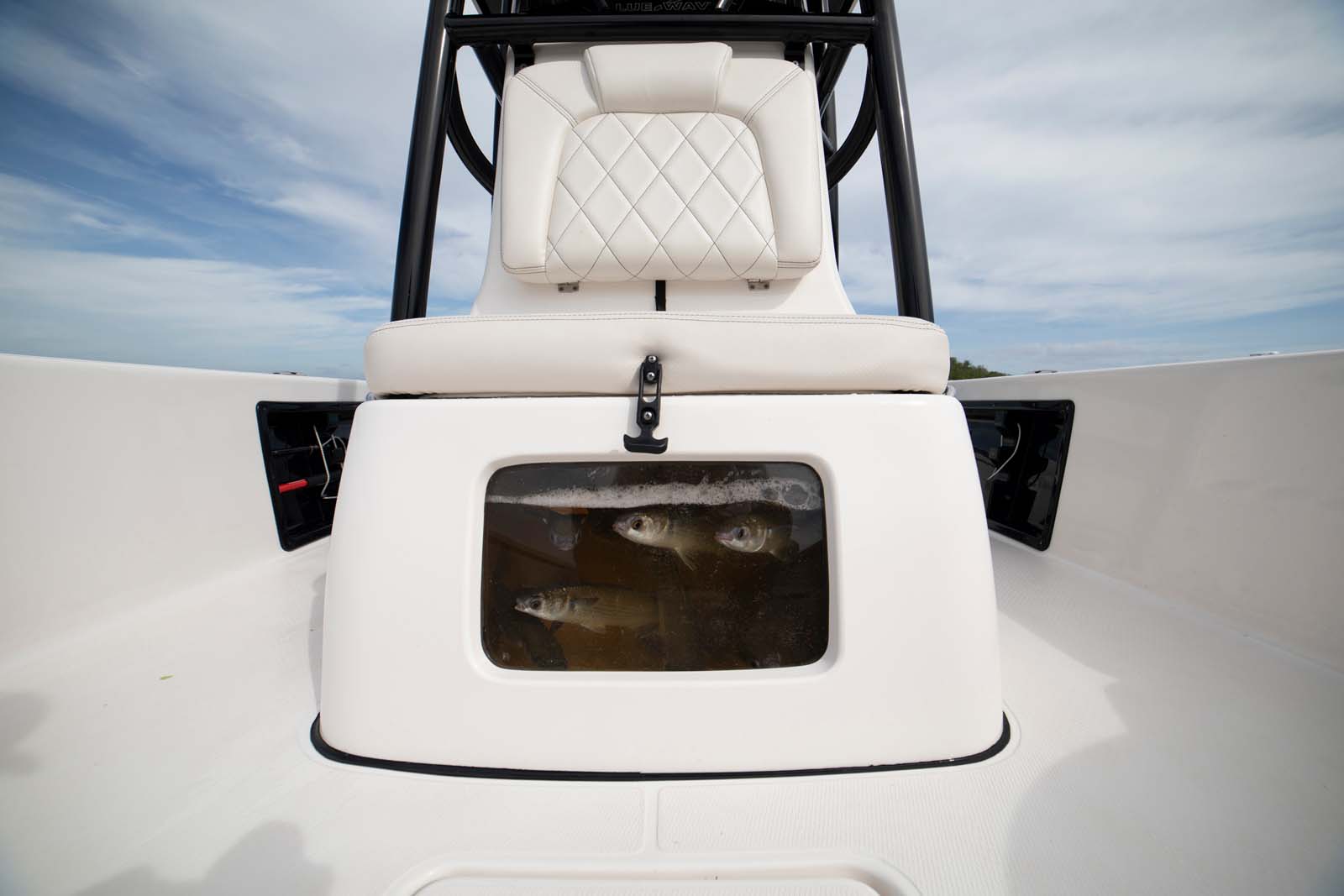

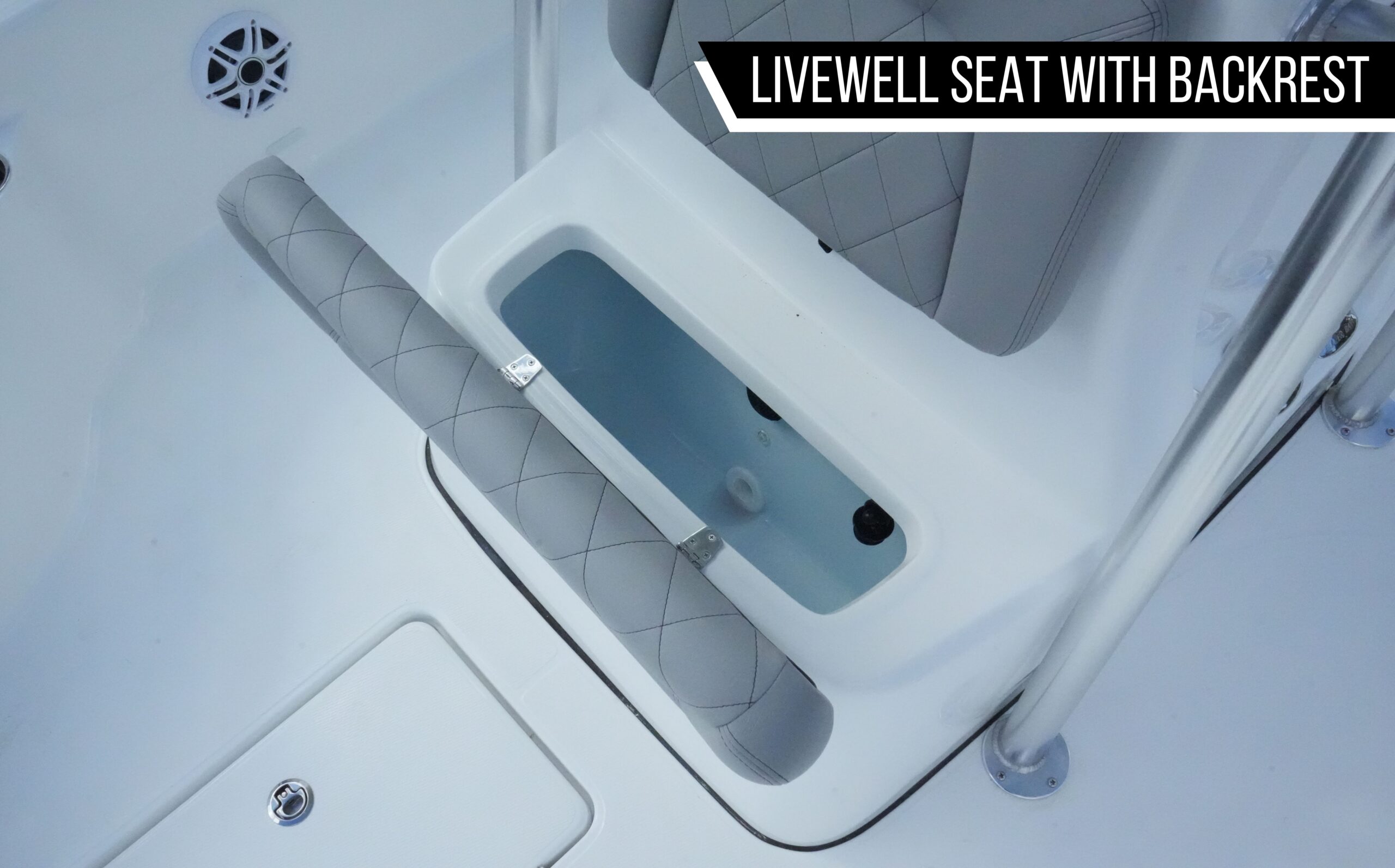

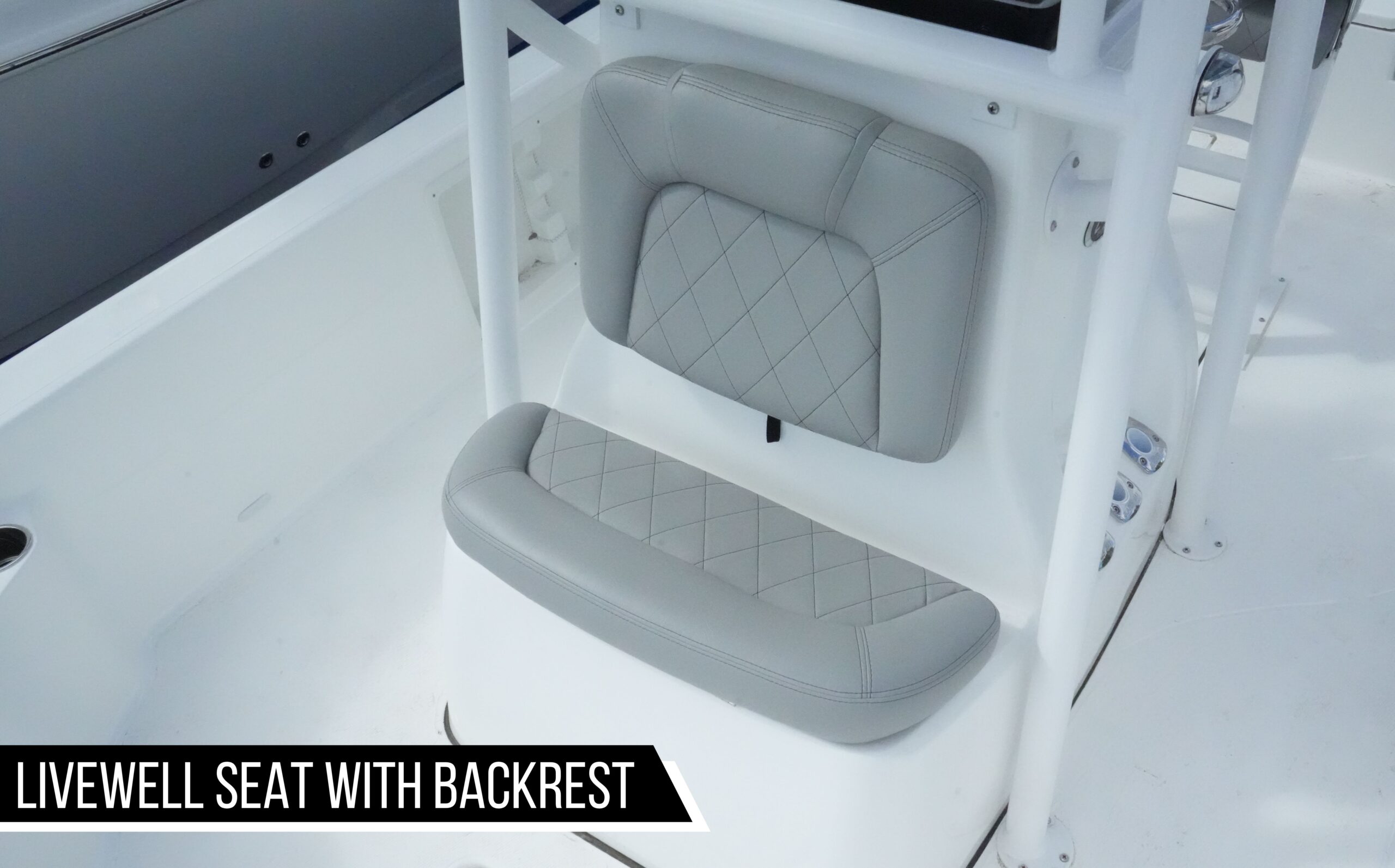

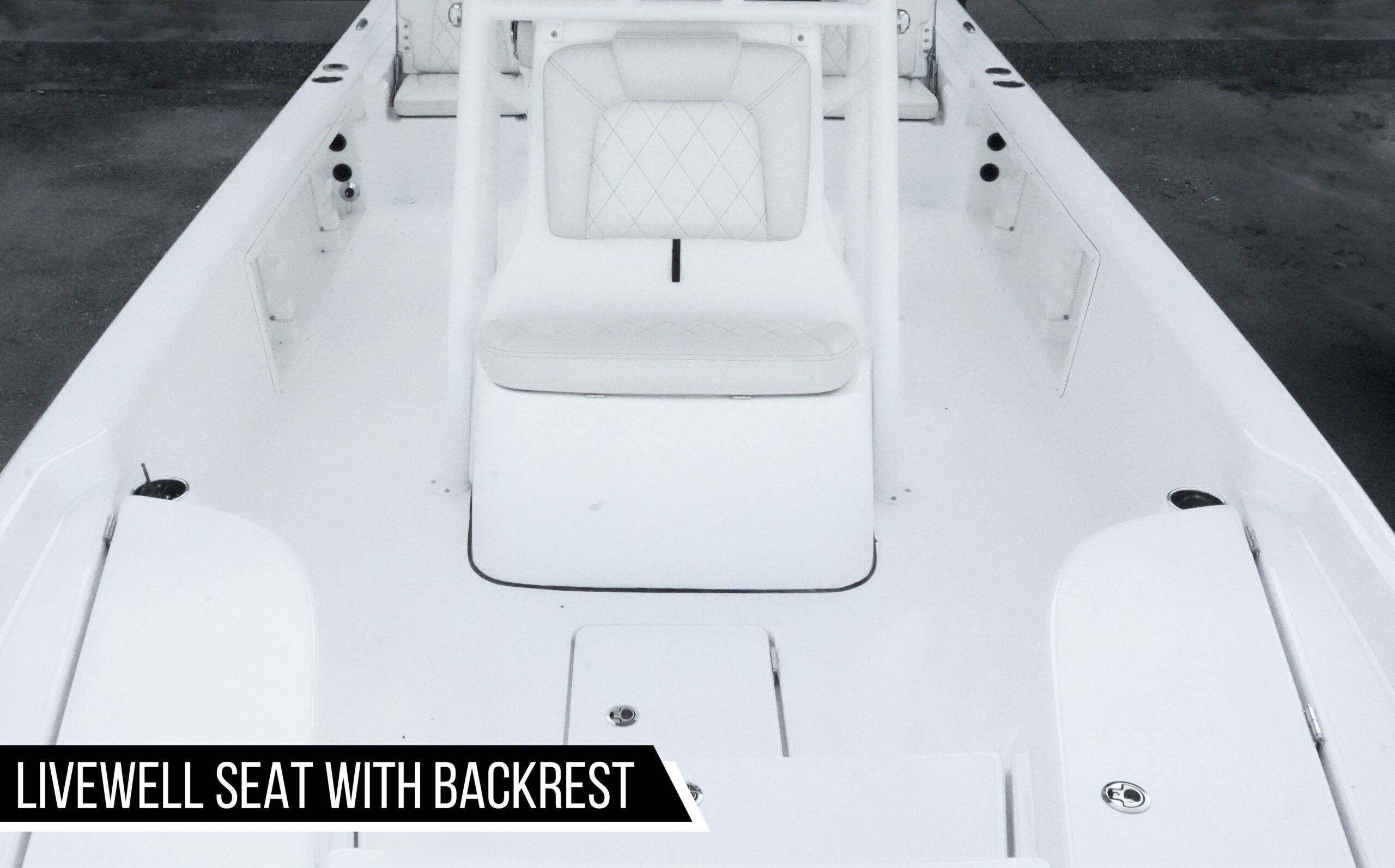

Livewell with rounded corners, recessed overflow, false magnetic wall and flush fittings
LED Interior Lighting
Oval Baitwell w/ Recirculating System
Removable Windscreen

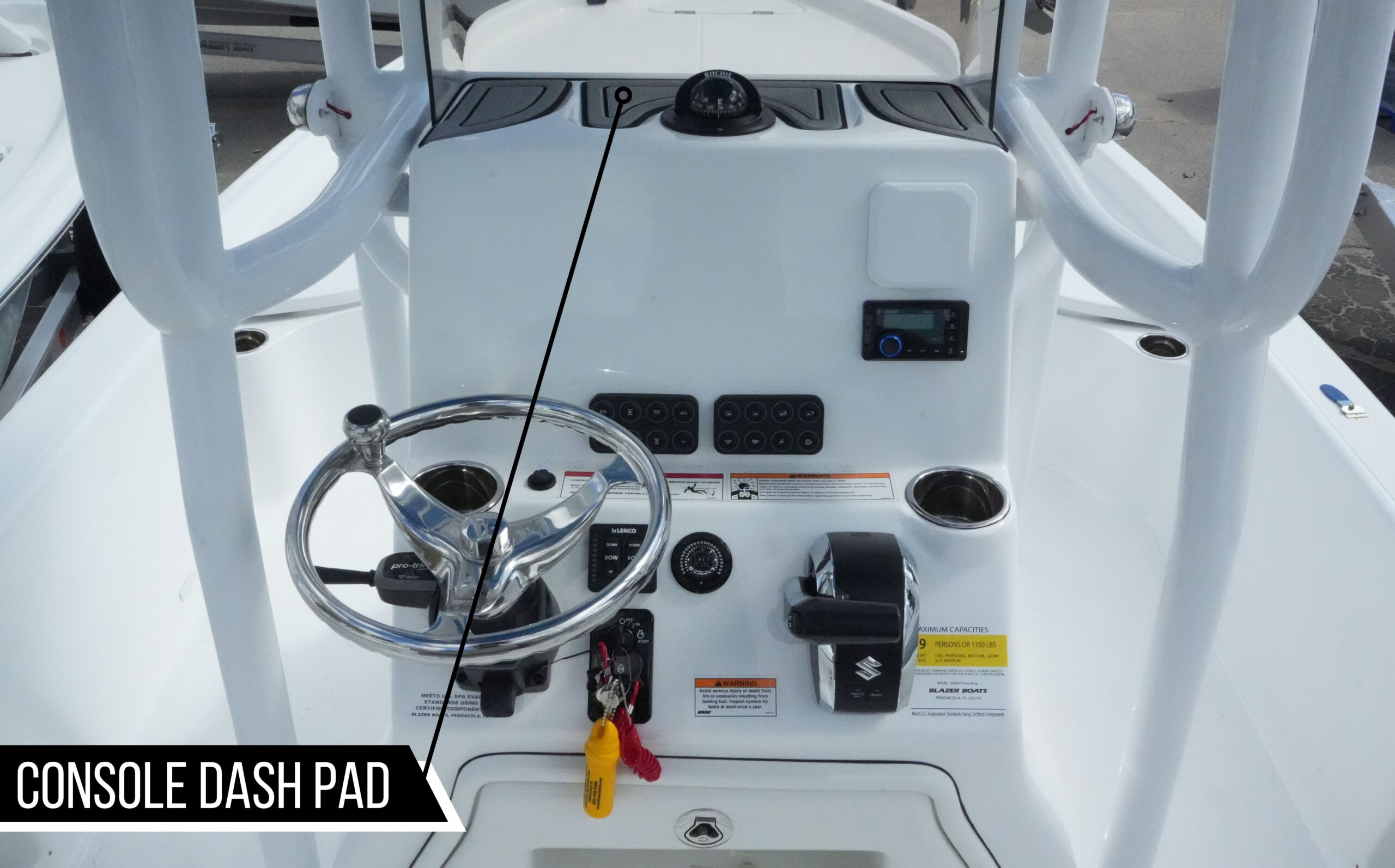

Large Open Dash Space Design for Flush Mount Accessories
12 Volt Receptacle
6 Stainless Steel Flush Mounted Rodholders
Marine Grade Horn with Stainless Grill
2 Molded Catch – All Trays
Achieves an Unbeatable 360* Bond Around Entire Perimeter
Attaches and Gives Full Width Bond and Support Across Entire Transom and up Sidewall
Multi Directional Engineered All Composite Stringer System
Creates 4 – Lateral Stringer Supports versus Competitions 2
Using Plexus “Fiberglass Fusion” Methacrylates Insure 2 Surfaces Become 1 During Bonding
100% Marine Grade Closed Cell Foam Filled
Over Sized Lateral and Horizontal Stringers allow for Large Amounts of Bonding Surface and Support
Double Level Gussets Supports the Load Weight of the Engine at Key Structural Points
Available
Engines
Mercury
Mercury 250XL DTS
Mercury 250XL PXS
Mercury 300 XL DTS
Mercury 300R XL DTS COLD FUSION
Mercury 300XL DTS COLD FUSION
Mercury 300XL PXS
Mercury 300XL VERADO
Mercury 350 XL VERADO CF V10
Mercury 350XL VERADO V10
Yamaha
Yamaha F250XB
Yamaha F250XCB
Yamaha F300XA
Yamaha F300XCB
Yamaha F300XCB2 WHITE
Yamaha F350XSA
Yamaha F350XSA2 WHITE
Yamaha VF250XB
Suzuki
Suzuki DF250APX
Suzuki DF250TX
Suzuki DF300APX
Suzuki DF300APXW
Suzuki DF350ATX DUAL PROP
Suzuki DF350ATXW WHITE DUAL PROP
Other
ENGINE NOT INCLUDED
Optional
Features
White
Cocoa
Light Gray
Underwater Hull Through Lights (Blue)
CLARION W 4 SPEAKERS – White
JL LEVEL 1 UPGRADE – 4 SPEAKERS, HEAD UNIT, 4 CHANNEL AMP – Graphite
JL LEVEL 1 UPGRADE – 4 SPEAKERS, HEAD UNIT, 4 CHANNEL AMP – W
JL LEVEL 2 UPGRADE – 4 SPEAKERS, HEAD UNIT, 2 10INCH SUBS, 5 CHANNEL AMP – W
JL LEVEL 2 UPGRADE – 4 SPEAKERS, HEAD UNIT, 2 10INCH SUBS, 5 CHANNEL AMP – Graphite
JL LEVEL 3 UPGRADE – 4 SPEAKER, 4 SUBS, 2 AMPS- WHITE
JL LEVEL 3 UPGRADE – 4 SPEAKER, 4 SUBS, 2 AMPS- GRAPHITE
Minn Kota Riptide Terrova 112 60IN
Garmin Force Kraken Trolling Motor,63in,100lb,White,no xdcr
2 BANK BATTERY CHARGER W INLET
3 BANK BATTERY CHARGER W INLET
4 BANK BATTERY CHARGER W INLET
5 BANK BATTERY CHARGER WITH INLET
2 BANK AND 3 BANK CHARGER W INLET
BOBS 10IN EXTREME GEN3 BLACK
BOBS 10IN EXTREME GEN3 WHITE
10INCH SLIDEMASTER MANUAL PLATE
Power Pole Not Included
8FT BLADE W BRACKET – White
8FT BLADE W BRACKET – Black
10 FT BLADE W BRACKET – White
10 FT BLADE W BRACKET – Black
DUAL 8FT BLADE W BRACKET -WHITE
DUAL 8FT BLADE W BRACKET-BLACK
DUAL 10FT BLADE W BRACKET-WHITE
DUAL 10FT BLADE W BRACKET-BLACK
SIMRAD EVO 3 7INCH
SIMRAD EVO 3 9INCH
SIMRAD EVO 3 12INCH
Spare Tire Not Included
Galvanized 14 Inch
Aluminum 14 Inch
N/A
White
VIP Light Smoke
New Ruby Red
Marlin Blue
Black
Light Gray
Key Lime Green
Dresden Blue
Ice Blue
Aqua Mist “Sea Foam”
Stars and Stripes Blue
N/A
White
VIP Light Smoke
New Ruby Red
Marlin Blue
Black
Light Gray
Key Lime Green
Dresden Blue
Ice Blue
Aqua Mist “Sea Foam”
Stars and Stripes Blue
MERCURY DTS DIGITAL RIGGING NO MERC STEERING
MERCURY DTS V10/450/500 VERADO RIGGING KIT
MERCURY DTS V10/500 VERADO ES RIGGING KIT
MERCURY DTS VERADO RIGGING WITH STEERING
MERCURY SMARTCRAFT RIGGING KIT
SUZUKI DIGITAL PRECISION RIGGING KIT
SUZUKI SMG GAUGE RIGGING KIT
YAMAHA DEC SINGLE ENGINE ES RIGGING KIT
YAMAHA DEC SINGLE ENGINE RIGGING KIT
YAMAHA MULTIFUNCTION RIGGING KIT
CLARION W 4 SPEAKERS – Black
TRAILER NOT INCLUDED
